13. Loosen the nine screws that secure the system board to the chassis.
14. Grasp two holders and slightly lift the system board.
15. Gently push the external input/output connectors out of their respective holes
in the chassis.

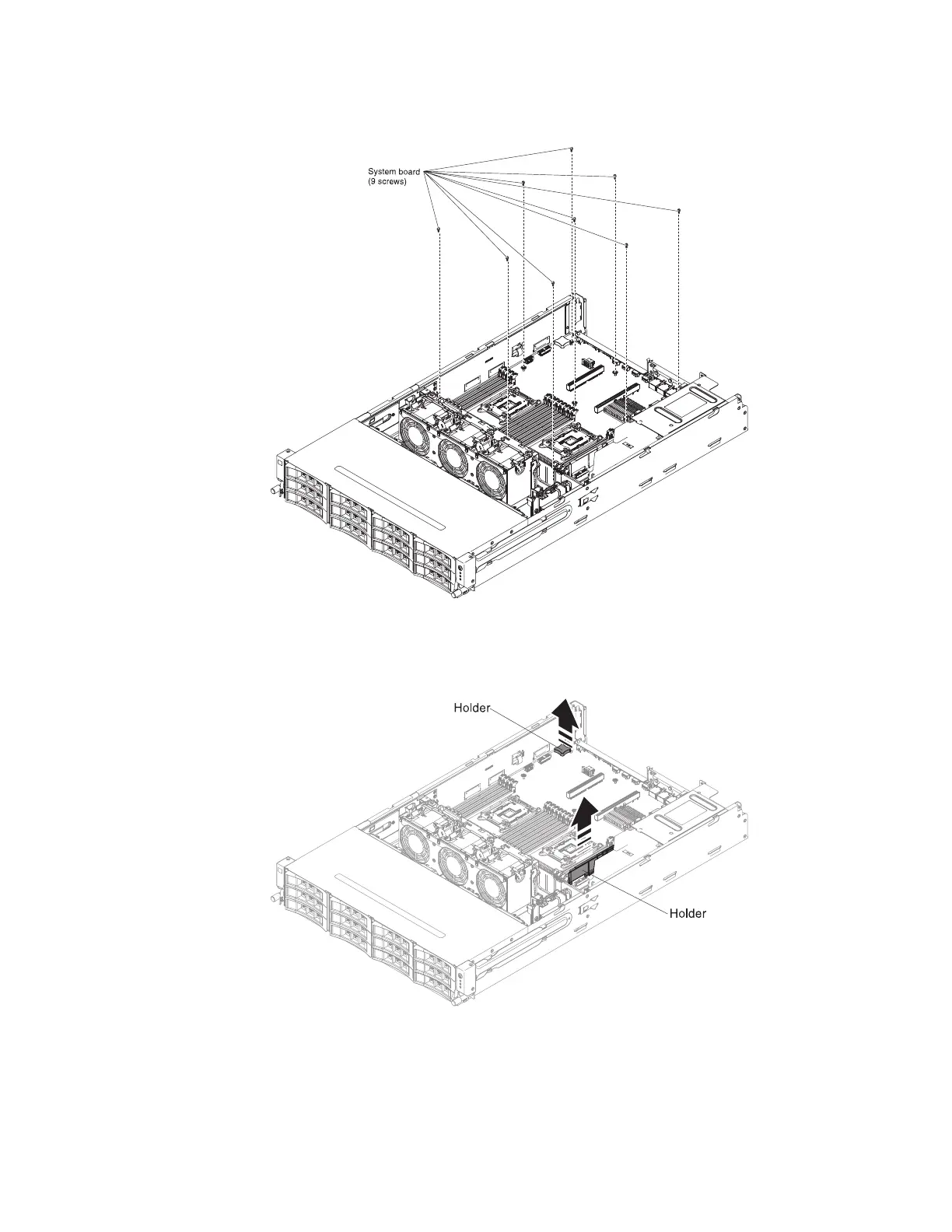

Figure 179. 9 screws
Figure 180. System board removal
Chapter 6. Removing and replacing components 253
