IBM System x3650 M5 User Manual

v 16x2.5-inch hot-swap hard disk drive with one expander
SAS signal cables
Power / configuration
cables
SAS 0
SAS 1
SAS 0
SAS 1

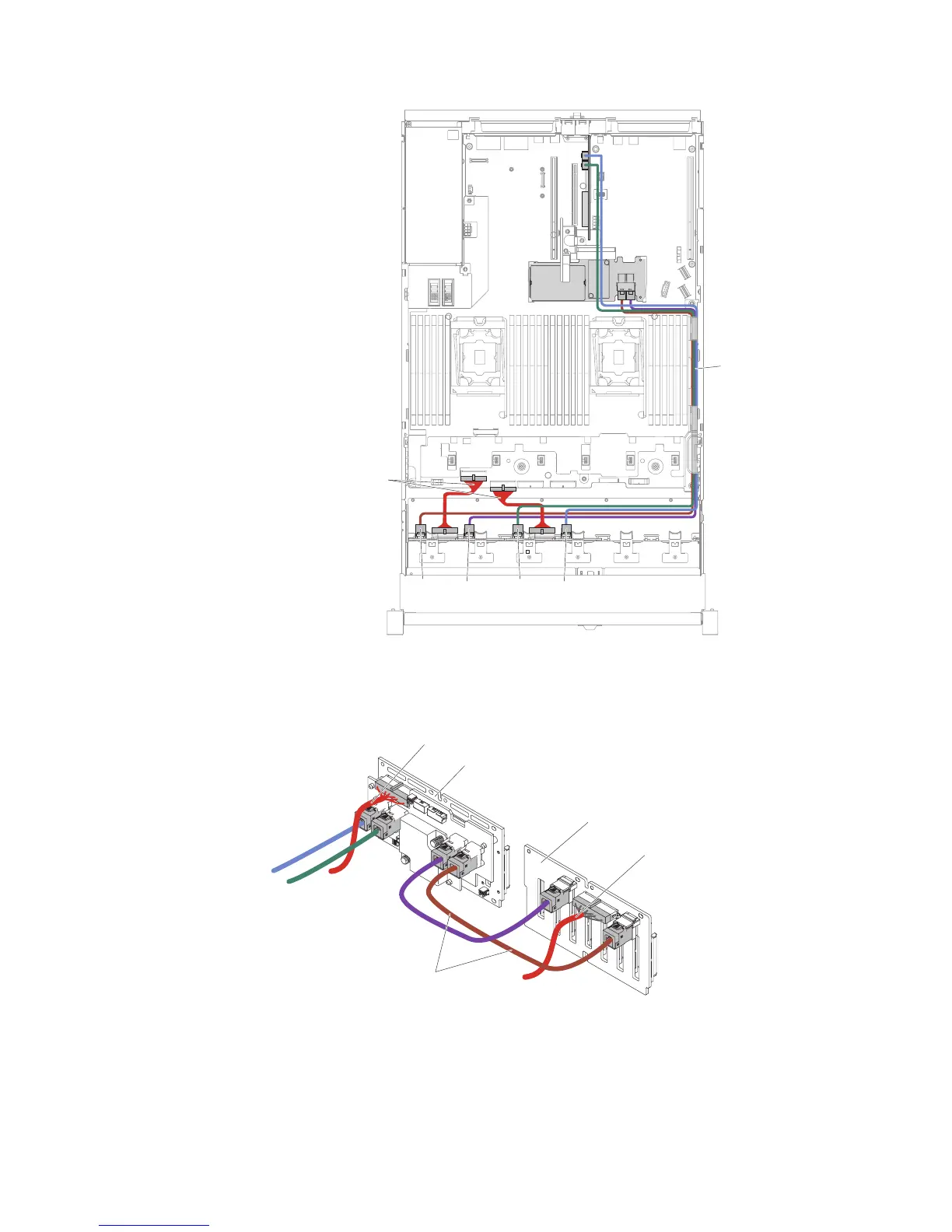

Figure 55. 16x2.5-inch hot-swap hard disk drive cabling
2.5-inch HDD hot-swap backplane
Power / configuration cable
SAS signal cable
Power / configuration cable
2.5-inch HDD hot-swap
backplane (expander)
Figure 56. 16x2.5-inch hot-swap hard disk drive cable connection
Chapter 5. Removing and replacing components 137

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
