4. Reinstall the drive bay filler panel that you removed earlier, if needed.
5. If you are instructed to return the drive assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing a simple-swap hard disk drive
Use this information to install a simple-swap hard disk drive.
About this task
You must turn off the server before installing simple-swap drives in the server.
Before you install a simple-swap SATA hard disk drive, read the following
information. For a list of supported hard disk drives, see http://www.ibm.com/
systems/info/x86servers/serverproven/compat/us/.
v Locate the documentation that comes with the hard disk drive and follow those
instructions in addition to the instructions in this chapter.
v As a general consideration, do not mix standard 512-byte and advanced 4-KB
format drives in the same RAID array because it may lead to potential
performance issues.
v Make sure that you have all the cables and other equipment that are specified in
the documentation that comes with the drive.
v Select the bay in which you want to install the drive.
v Check the instructions that come with the drive to determine whether you have
to set any switches or jumpers on the drive. If you are installing a SATA device,
be sure to set the SATA ID for that device.
v The simple-swap server models support up to sixteen 2.5-inch or eight 3.5-inch
simple-swap SATA hard disk drives. Do not install hot-swap drives into a
simple-swap server model, it is not supported.
v You can install one 2.5-inch simple-swap SATA hard disk drives in bay 0 in the
server. Do not install hot-swap drives into a simple-swap server model, it is not
supported.
v The simple-swap server models are available only in non-RAID configurations.
v The electromagnetic interference (EMI) integrity and cooling of the server are
protected by having all bays and PCI Express slots covered or occupied. When
you install a drive or a PCI Express adapter, save the EMC shield and filler
panel from the bay or PCI Express adapter slot cover in the event that you later
remove the device.

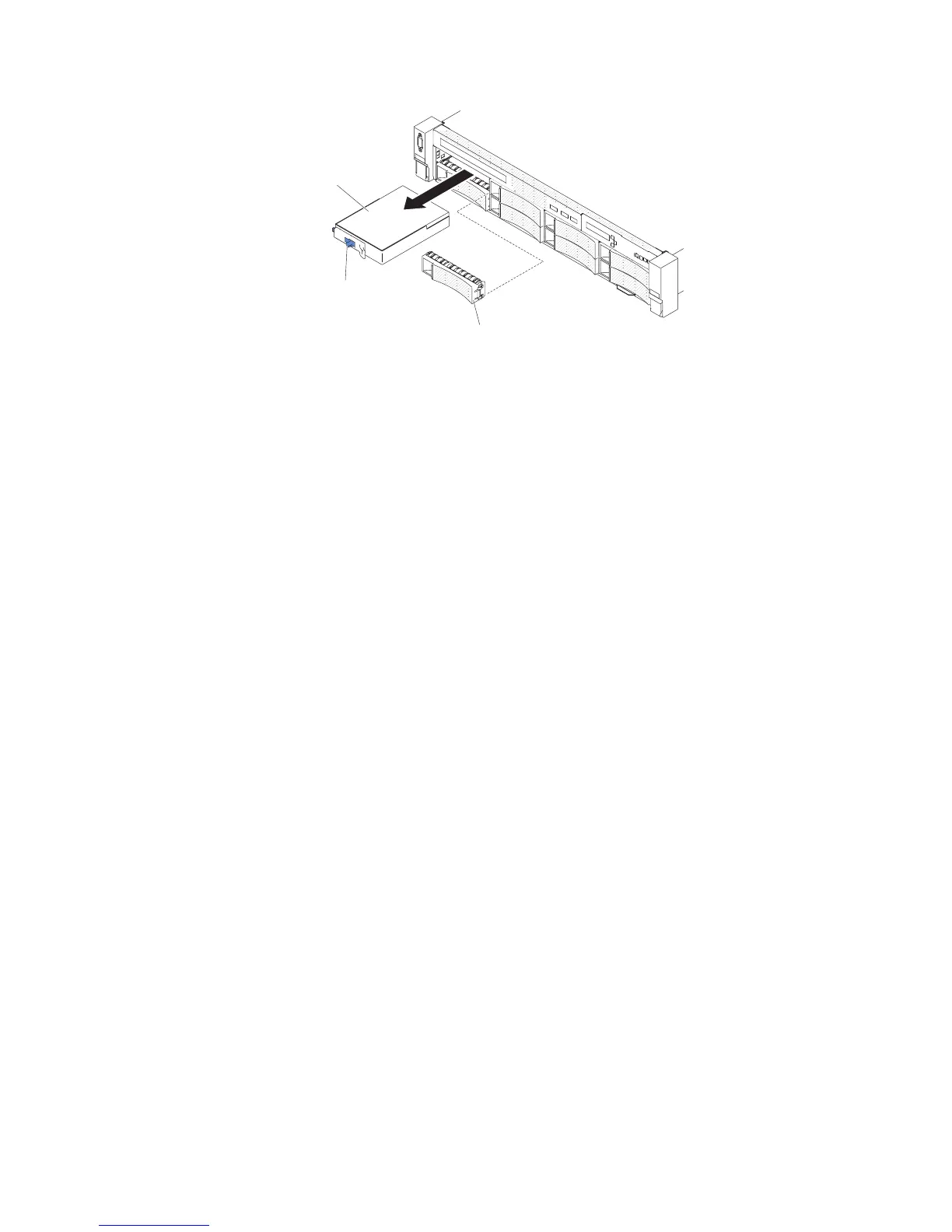

Filler panel
3.5-inch simple-swap
hard disk drive
Release latch
Figure 82. 3.5-inch simple-swap hard disk drive removal
158 System x3650 M5 Type 5462: Installation and Service Guide
