Removing the front USB assembly
Use this information to remove the front USB assembly.
About this task
To remove the front USB assembly, complete the following steps.
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Disconnect the cable on the front USB assembly from the system board.
5. ▌1▐Pull up the release latch slightly and ▌2▐slide the front USB assembly out of
the server.
6. If you are instructed to return the front USB assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing the front USB assembly
Use this information to replace the front USB assembly.
About this task
To install the front USB assembly, complete the following steps.
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Align and slide the front USB assembly into the server until it clicks into place.

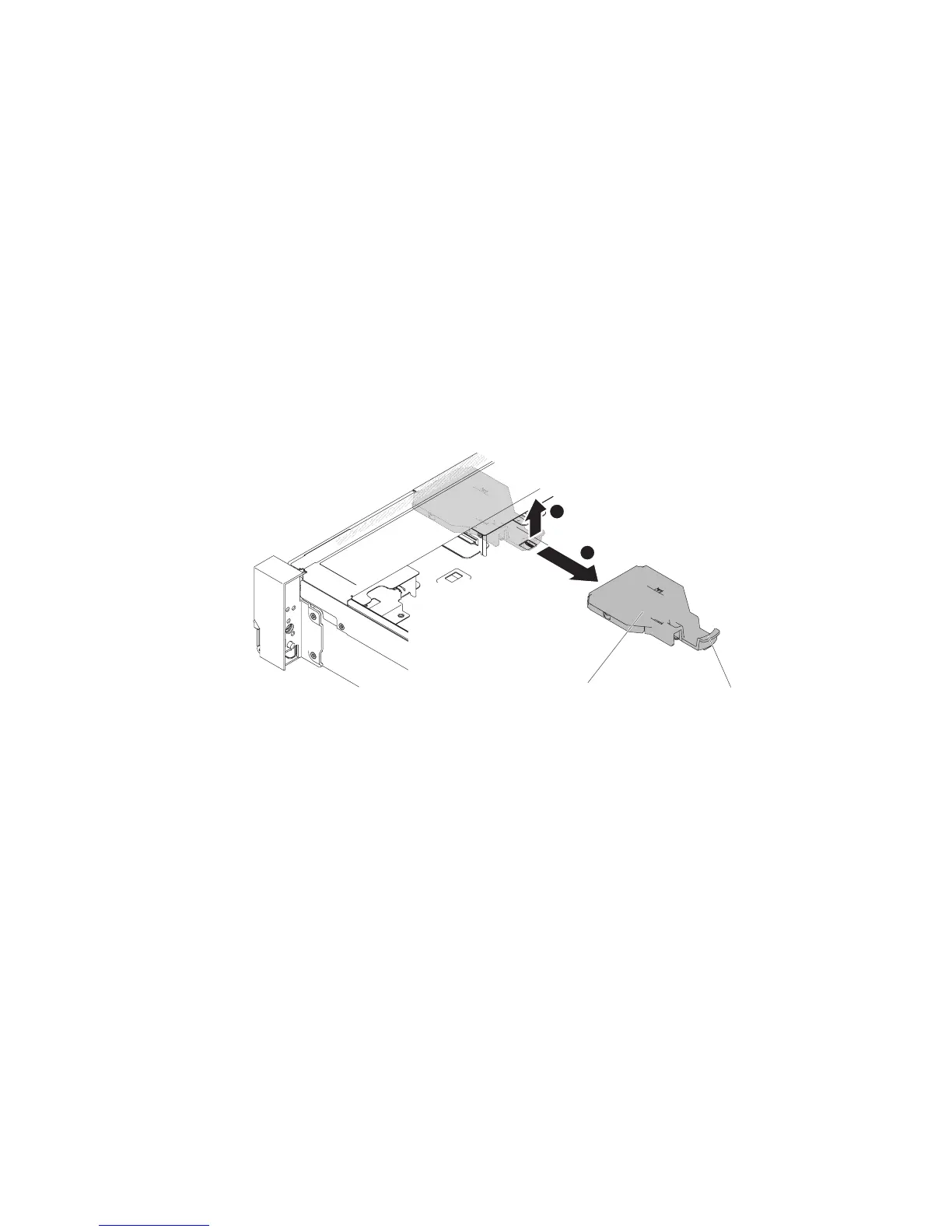

1
2
Front USB assembly Release latch
Figure 74. Front USB assembly removal
152 System x3650 M5 Type 5462: Installation and Service Guide
