IBM System x3650 M5 User Manual

Removing and replacing server components
This section provides information for removing and replacing components in the
server.
Removing and replacing structural parts
Replacement of structural parts is your responsibility. If IBM installs a structural
part at your request, you will be charged for the installation.
The illustrations in this document might differ slightly from your hardware.
SAS signal cable
Power / configuration
cables
SAS 0
SAS 1

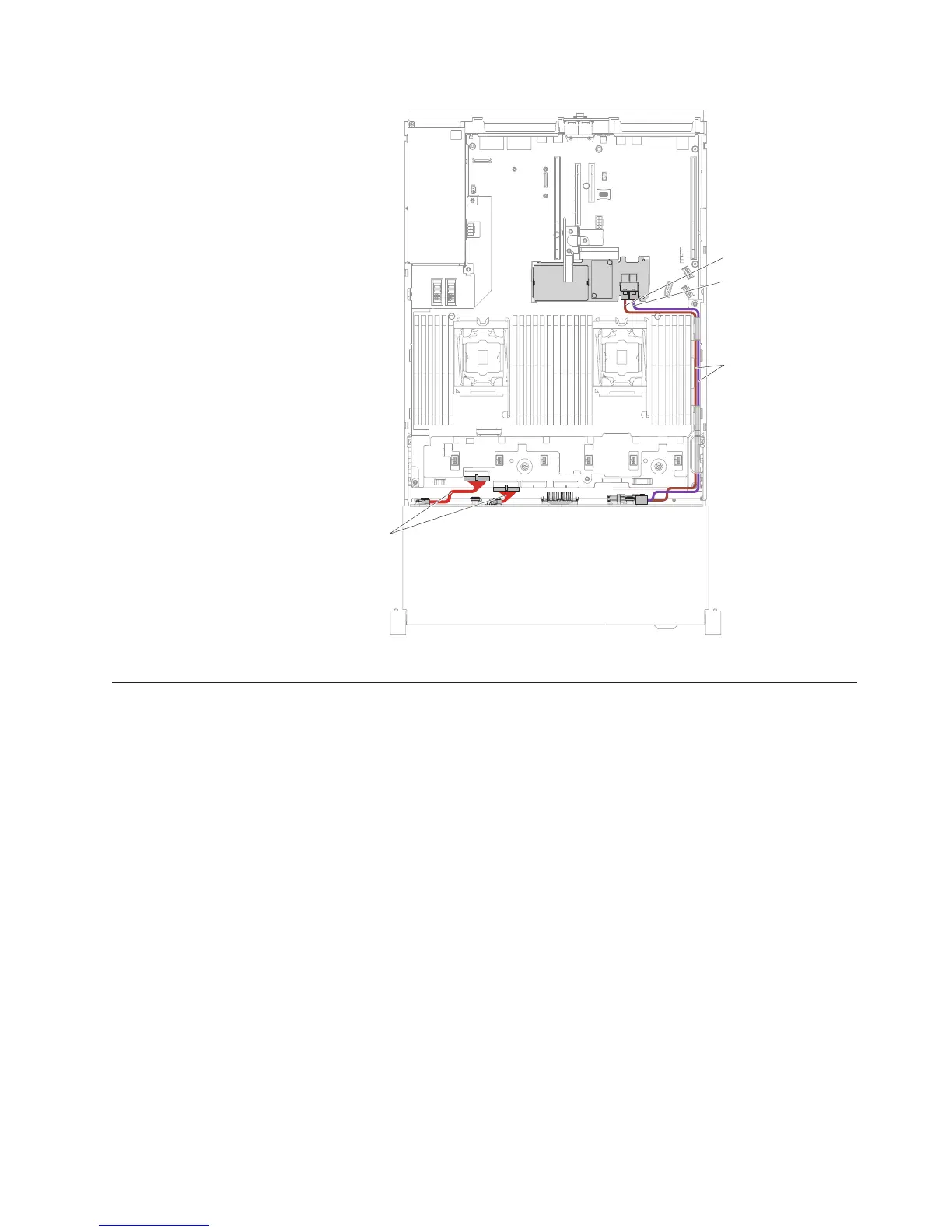

Figure 67. 12x3.5-inch hot-swap hard disk drive cabling
Chapter 5. Removing and replacing components 145

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
