IBM System x3650 M5 User Manual

the LCD system information display panel, the operator information panel or on
the system board is also lit to help isolate the error. This LED is controlled by
the IMM.
LCD system information display panel
Use this information for an overview of the LCD system information display panel,
which displays various types of information about the server.
The LCD system information display panel is on the front of the server. The LCD
system information display panel enables you to have quick access to system
status, firmware, network, and health information. The following illustration shows
the controls on the LCD system information display panel.
v Scroll up button:Press this button to scroll up or scroll to the left in the main
menu to locate and select the system information that you want displayed.
v Select button:Press this button to make your selection from the menu options.
v Scroll down button:Press this button to scroll down or scroll to the right in the
main menu to location and select the system information that you want
displayed.

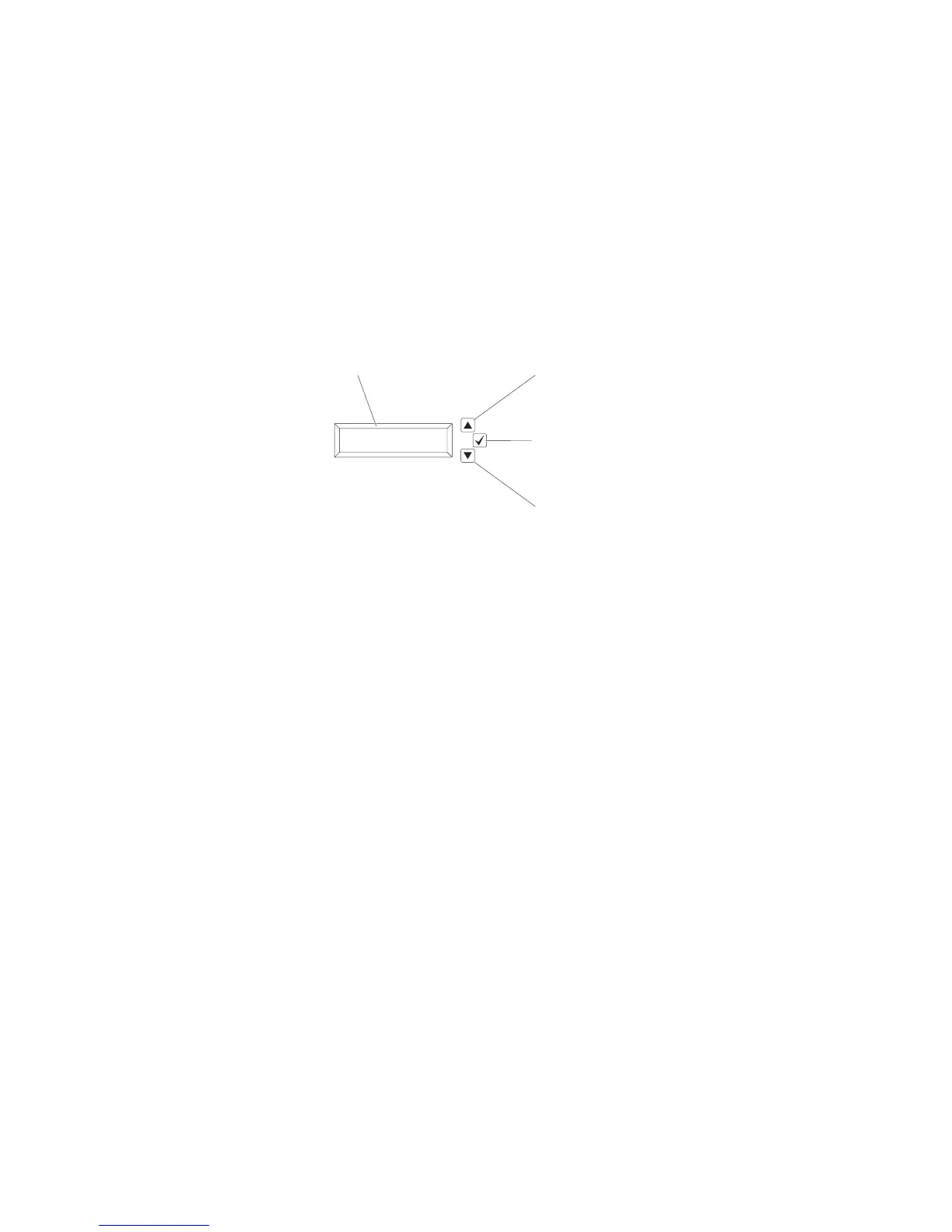

The following is an illustration of the LCD system information display panel menu
options flow.
LCD system information display panel
Scroll down button
Scroll up button
Select button
Figure 16. LCD system information display panel
22 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
