IBM System x3650 M5 User Manual

System-board internal connectors

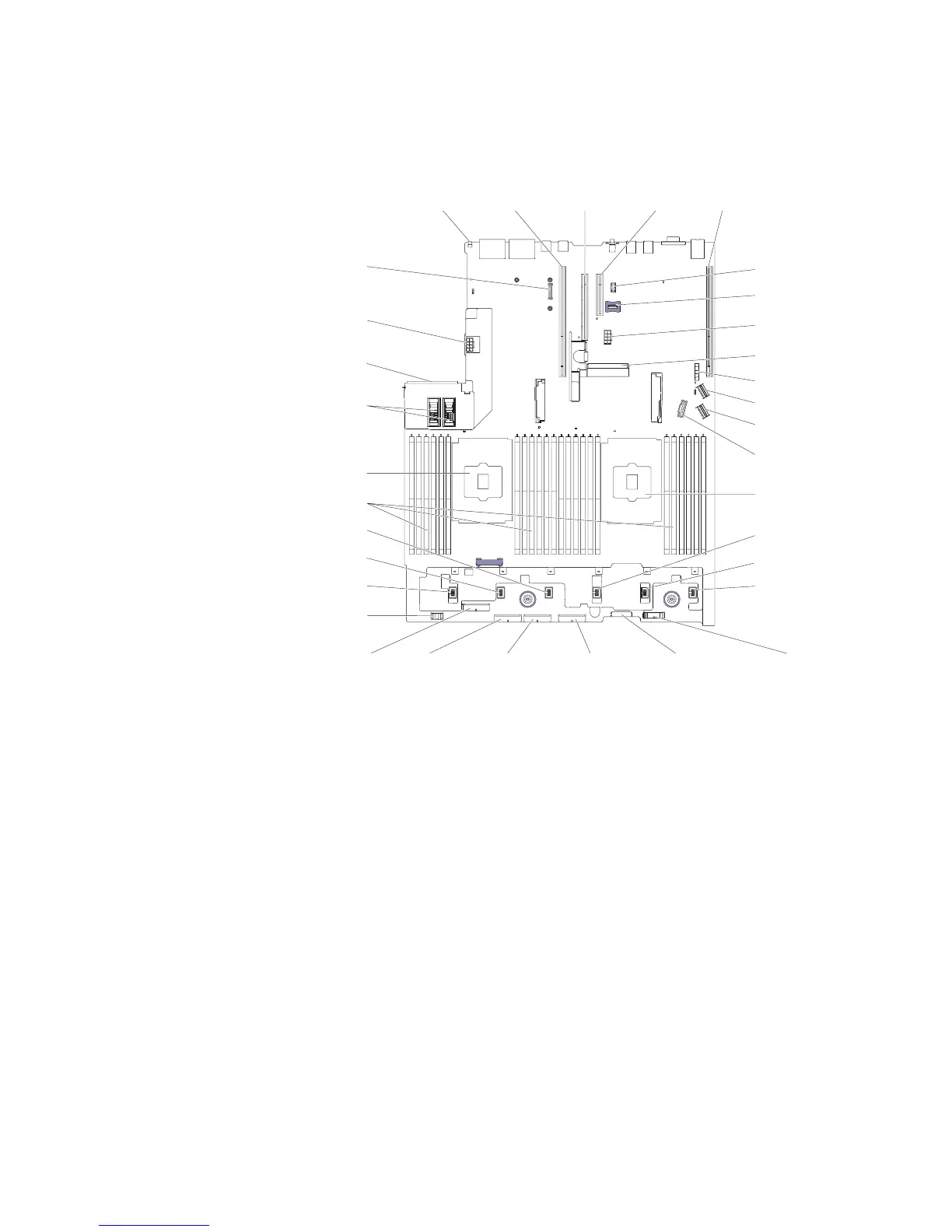

The following illustration shows the internal connectors on the system board.
System-board external connectors
The following illustration shows the external connectors on the system board.
Dedicated slotless
RAID connector
Optical disk
drive connector
Operator information /
LCD panel connector
PCI riser
connector 1
PCI riser
connector 2
Video card power
connector 2
USB hypervisor
connector
Power paddle
module connector
Microprocessor 2
Fan 6 connector
Fan 3 connector
Fan 2 connector
Fan 1 connector
SAS/SATA
backplane
power / config
connector 4
Front USB
connector
Front Video
connector
Microprocessor 1
DIMM connectors
NMI button
Battery
S ATA 0
S ATA 1
PCI slot
connector 4
PCI slot
connector 5
Fan 4 connector
Fan 5 connector
Power supply
connector
SAS/SATA
backplane
power / config
connector 3
SAS/SATA
backplane
power / config
connector 2
SAS/SATA
backplane
power / config
connector 1
Video card power
connector 1
Serial connector
SD adapter
connector
Figure 25. System-board internal connectors
Chapter 1. The System x3650 M5 server 29

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
