IBM System x3650 M5 User Manual

Replacing a RAID adapter battery/flash power module
Use this information to replace a RAID adapter battery/flash power module.
About this task
To install a RAID adapter battery/flash power module in the server, complete the
following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect all power cords and
external devices.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Install the ServeRAID adapter on the system board (see “Replacing an
adapter” on page 190) or install the ServeRAID adapter on the riser card and
install the riser-card assembly in the server (see “Replacing an adapter” on
page 190).
5. If the flash power modules are located behind the full-height, full-length
adapters, remove the two shipping brackets first.
6. Align the battery/flash power module with the slot and push the battery into
the battery/flash power module holder and make sure that the holder retains
the battery/flash power module securely.
Air baffle
Shipping brackets

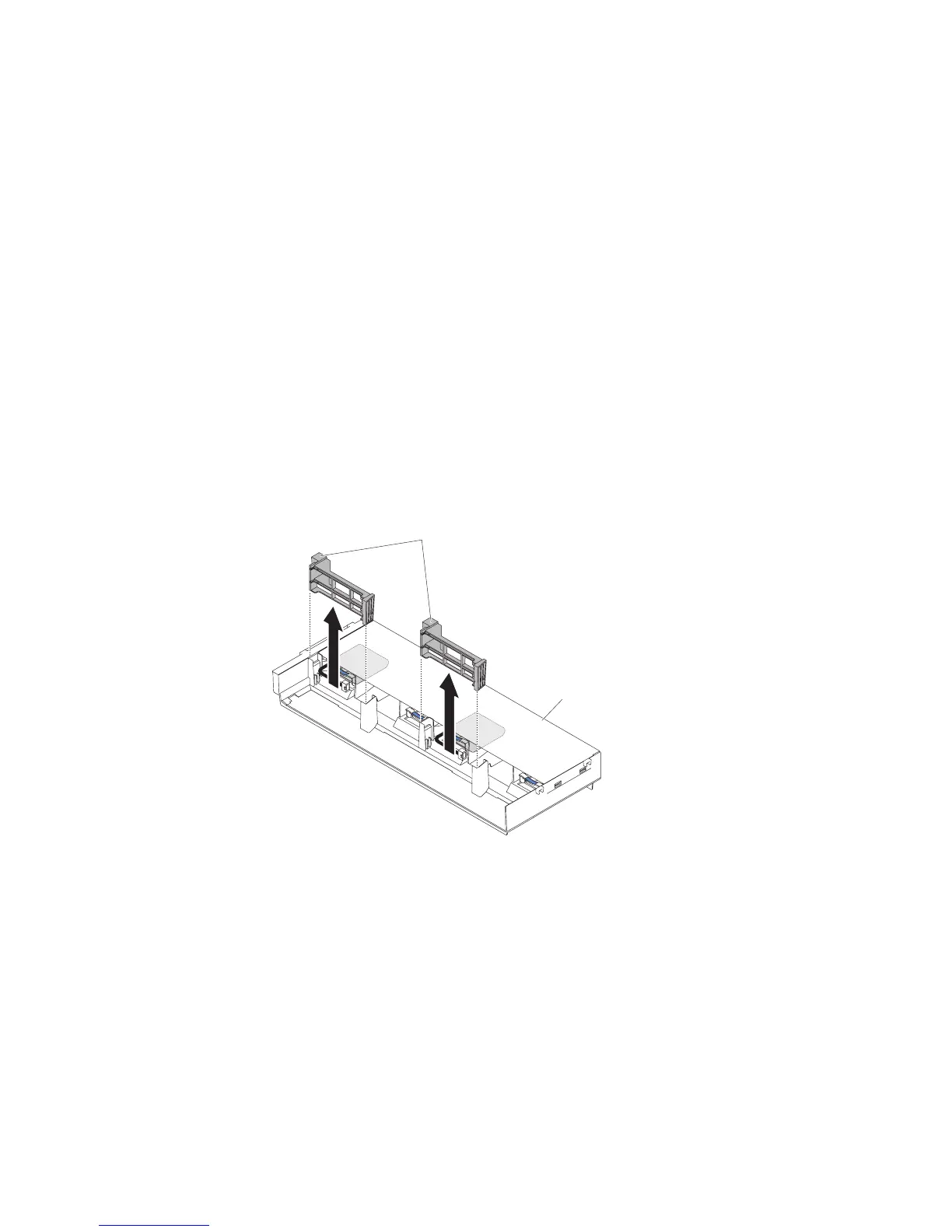

Figure 129. Shipping bracket removal
Chapter 5. Removing and replacing components 199

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
