6. Replace the top cover (see “Replacing the top cover” on page 147).
7. Slide the server into the rack.
8. Reconnect the power cords and any cables that you removed.
9. Turn on the peripheral devices and the server.
Removing the dedicated slotless RAID controller
Use this information to remove the dedicated slotless RAID controller.
About this task
The dedicated slotless RAID controller can be installed in the dedicated connector
on the system board (see “System-board internal connectors” on page 29 for the
location of the connectors).
To remove the dedicated slotless RAID controller, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect the power cords and
all external cables, if necessary.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Disconnect the signal cables from the connectors on the controller and note
their locations.
PCI riser-card
assembly 2
PCI riser-card
assembly 1
Shipping bracket for
riser-card assembly

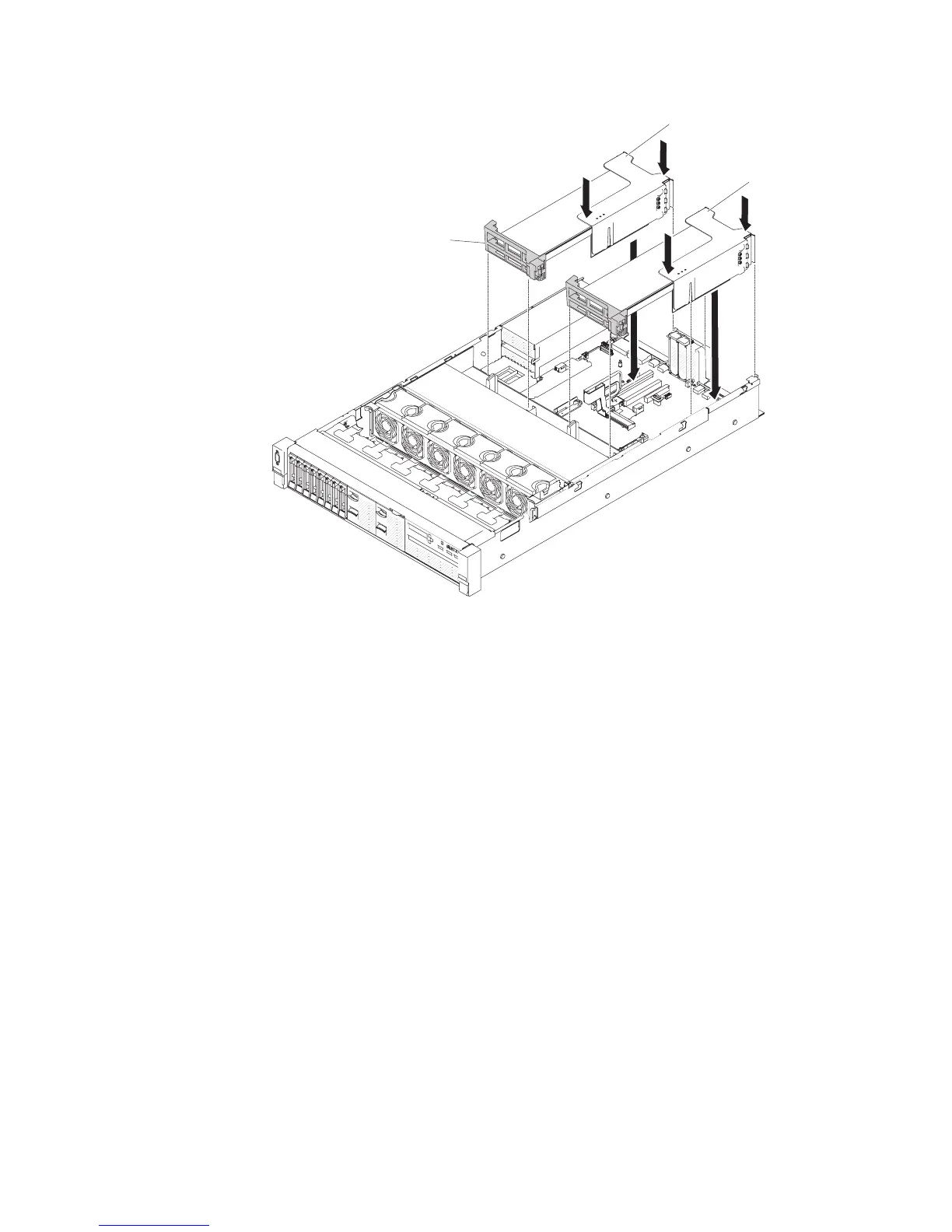

Figure 109. Riser-card assembly installation - full-height, full-length adapters
Chapter 5. Removing and replacing components 183
