4. Reinstall any adapters and reconnect any internal cables you might have
removed in other procedures (see “Replacing an adapter” on page 190 and
“Internal cable routing and connectors” on page 131).
5. Align the riser-card assembly with the selected PCI connector on the system
board and align it with the slots on the chassis; then, lower it into the server
and press down firmly until the riser-card assembly is seated correctly in the
connector on the system board.
v For half-length and low profile adapters
v For full-height, full-length adapters
Note: Shipping brackets are only included in the server that is
pre-configured with full-height, full-length adapters
PCI riser-card
assembly 2
PCI riser-card
assembly 1

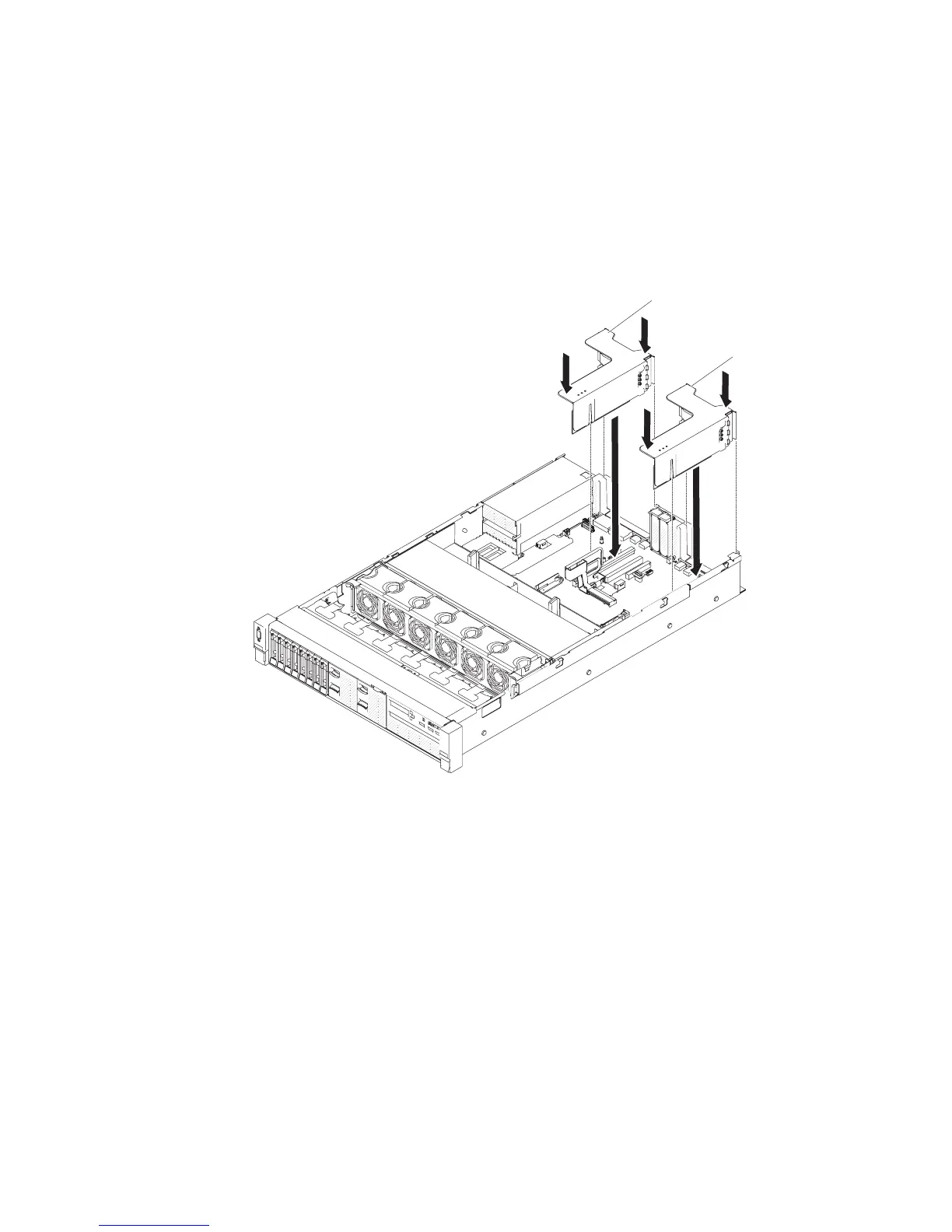

Figure 108. Riser-card assembly installation - half-length and low profile adapters
182 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
