16x2.5-inch drive model
The internal routing for the 16x2.5-inch drive model cables.

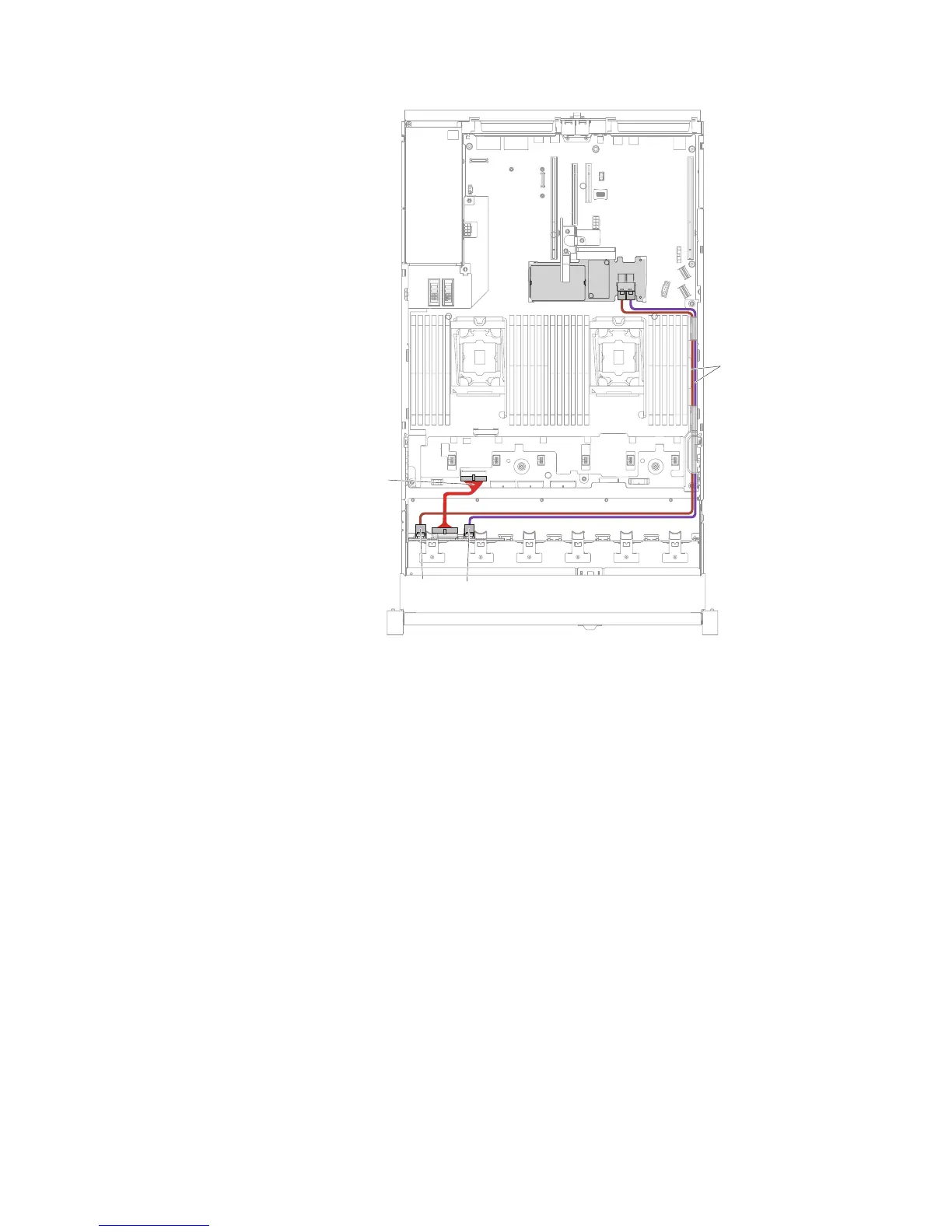

The following illustration shows the internal routing for the 16x2.5-inch drive
model cables.
16x2.5-inch simple-swap hard disk drive model
v 16x2.5-inch simple-swap hard disk drive with hardware RAID
SAS signal cable
Power / configuration
cable
SAS 0
SAS 1
Figure 52. 8x2.5-inch hot-swap hard disk drive cabling
Chapter 5. Removing and replacing components 135
