IBM System x3650 M5 User Manual

Replacing a hot-swap fan
Use this information to replace a hot-swap fan.
About this task
For proper cooling, the server requires that all four dual-motor hot-swap fans be
installed at all times.
Attention: To ensure proper operation, replace a failed hot-swap fan within 30
seconds.
To replace a hot-swap fan, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Remove the top cover (see “Removing the top cover” on page 146).
3. Touch the static-protective package that contains the new fan to any unpainted
metal surface on the server. Then, remove the new fan from the package.
4. Orient the fan over the fan slot in the fan cage so that the fan connector aligns
with the connector on the system board.
5. Insert the fan into the fan slot in the fan cage and press it down until it is
seated correctly in the slot.
Note: Make sure that the newly-installed fan aligns horizontally with other
correctly-seated fans for proper installation.
6. Replace the top cover (see “Replacing the top cover” on page 147).
7. Slide the server into the rack.
Fan 1
Fan 2
Fan 3
Fan 4
Fan 5
Fan 6
Hot-swap
fan error LED

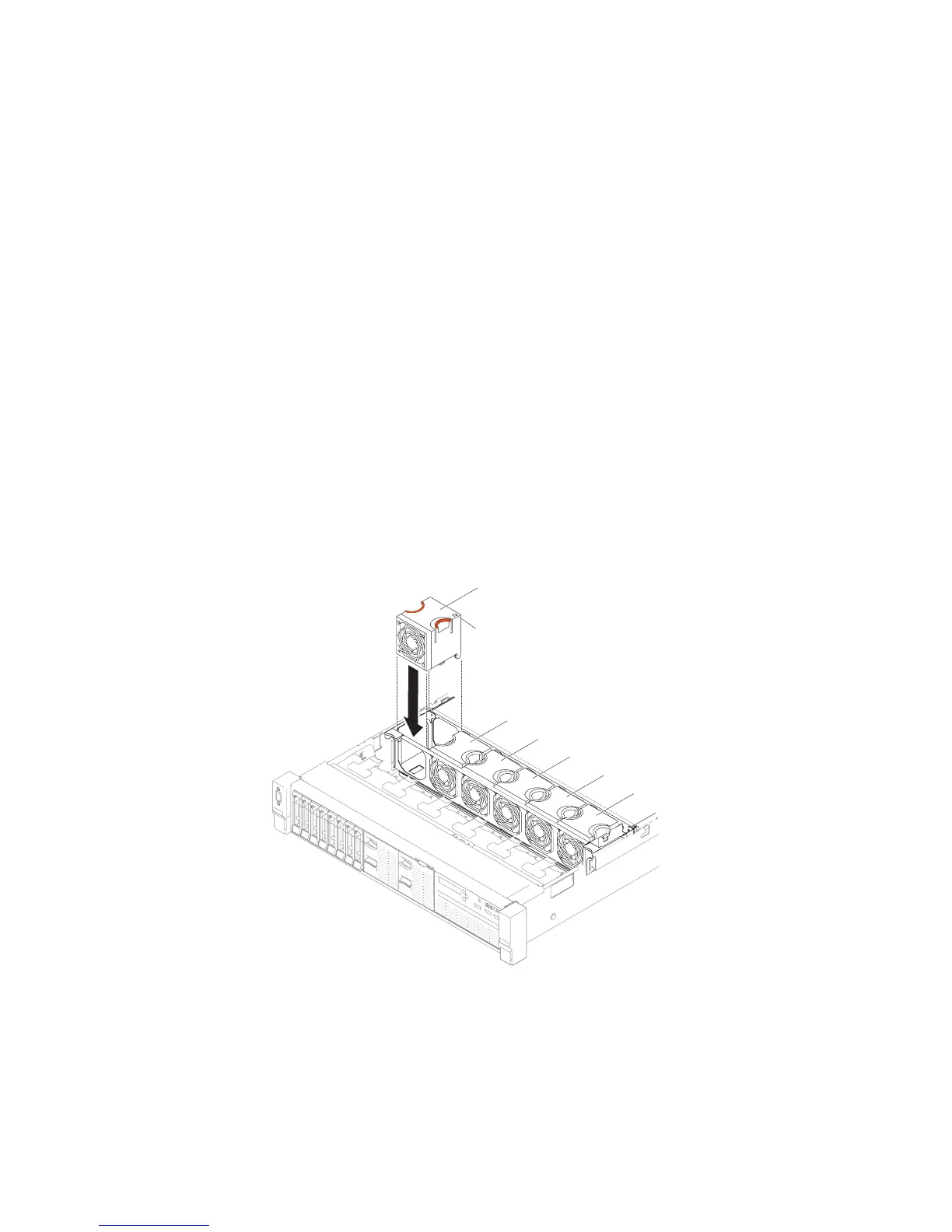

Figure 99. Fan installation
Chapter 5. Removing and replacing components 175

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
