24x2.5-inch drive model

The internal routing for the 24x2.5-inch drive model cables.

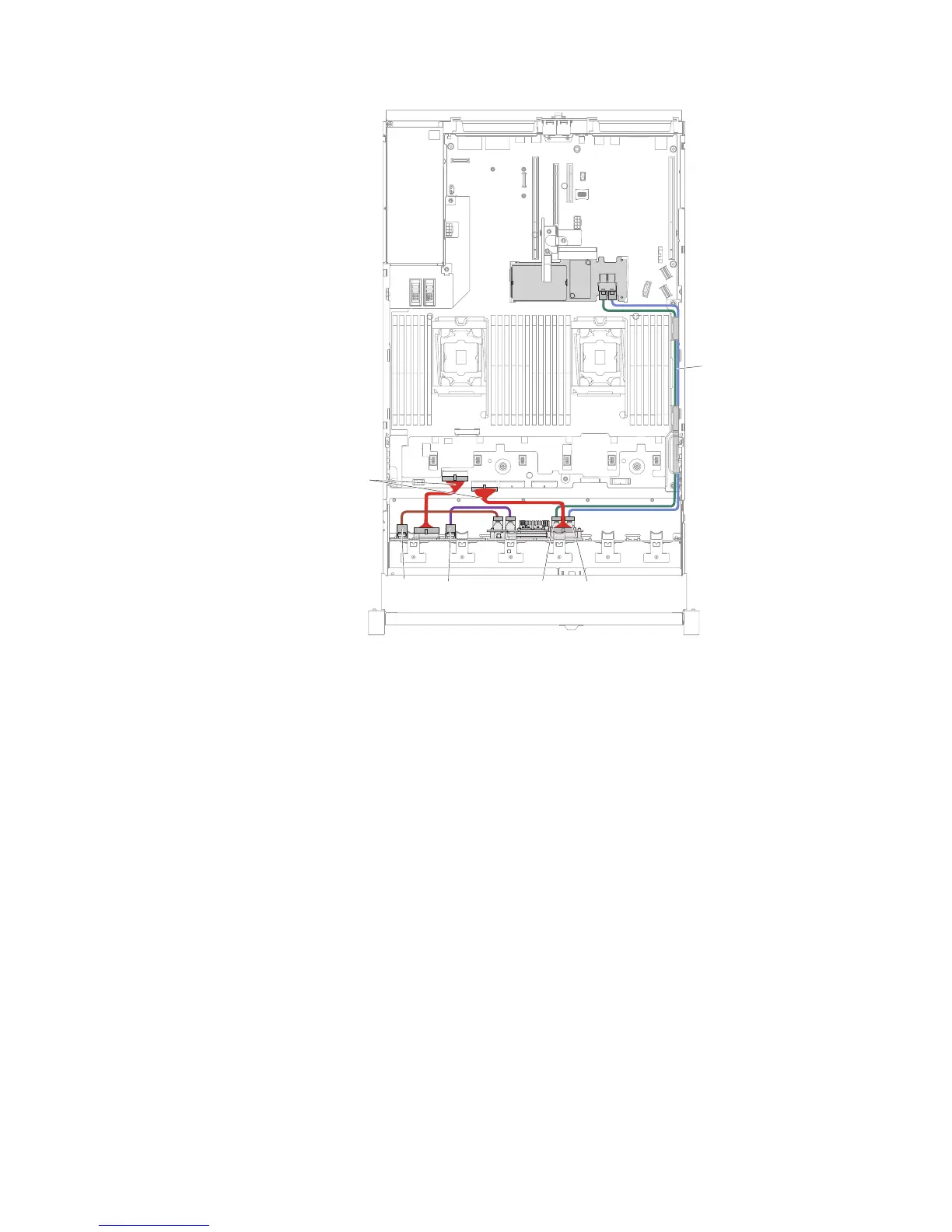

The following illustration shows the internal routing for the 24x2.5-inch drive

model cables.

24x2.5-inch hot-swap hard disk drive model

v 24x2.5-inch hot-swap hard disk drive with 3 identical backplanes

SAS signal cables

Power / configuration

cables

SAS 0

SAS 1

SAS 0

Figure 57. 16x2.5-inch hot-swap hard disk drive cabling

138 System x3650 M5 Type 5462: Installation and Service Guide
