7. Route the backplane signal cables. (See “2.5-inch hard disk drive cable
connection” on page 133 and “3.5-inch hard disk drive cable connection” on
page 142).
8. Connect the signal cables to the controller.
9. Reconnect any cables that you removed.
10. Replace the top cover (see “Replacing the top cover” on page 147).
11. Slide the server into the rack.
12. Reconnect the power cords and any cables that you removed.
Removing an adapter
Use this information to remove an adapter.
Removing an adapter in a riser-card assembly:
Use this information to remove an adapter.
About this task
This topic describes removing an adapter from a expansion slot in a riser-card
assembly. These instructions apply to PCI adapters such as video graphic adapters
and network adapters.
The following illustration shows the locations of the adapter expansion slots from
the rear of the server.
Dedicated slotless
RAID connector
Retention bracket
Retention bracket

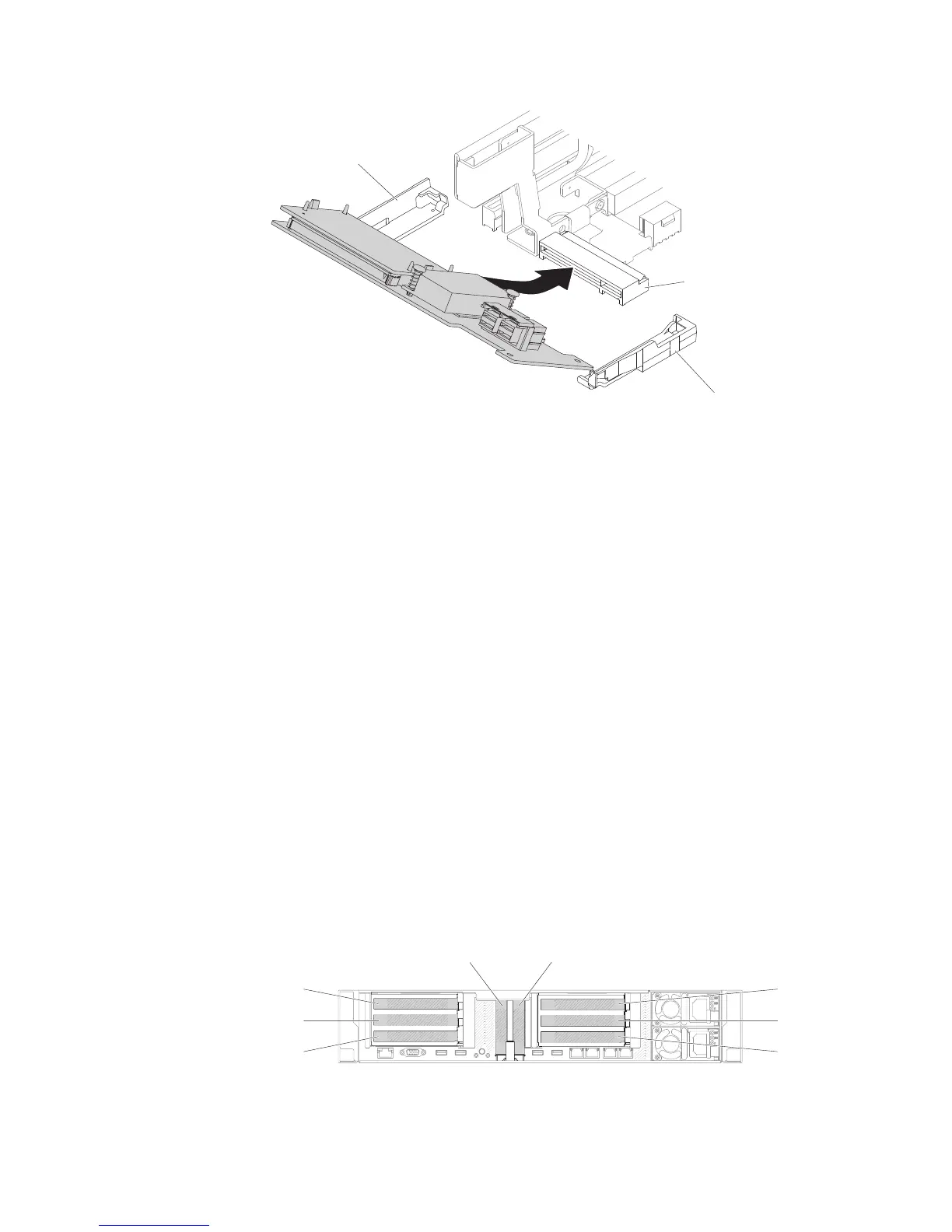

Figure 111. Dedicated slotless RAID controller installation
Slot 1
Slot 2
Slot 3
Slot 6
Slot 7
Slot 8
Slot 4 Slot 5
Figure 112. PCI riser-card adapter expansion slot locations
Chapter 5. Removing and replacing components 185

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
