The following table describes the maximal card dimension supported in each slot.
Table 12. The maximal card dimension supported in each slot
Riser-card assembly
Slot
number The maximal card dimension supported
Riser-card assembly 1 1 Full height, up to full length
2 Full height, up to full length
3 Full height, half length
4 Low-profile
5 Low-profile
Riser-card assembly 2 6 Full height, up to full length
7 Full height, up to full length
8 Full height, half length
Note: If you are replacing a high power graphics adapter, you might need to
disconnect the internal power cable from the system board before removing the
adapter.
To remove an adapter, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect all power cords;
then, remove the top cover (see “Removing the top cover” on page 146).
3. Press down on the left and right side latches and slide the server out of the
rack enclosure until both slide rails lock; then, remove the top cover (see
“Removing the top cover” on page 146).
4. Remove the riser-card assembly that contains the adapter (see Removing a
riser-card assembly).
Slot 1
Slot 2
Slot 3
Slot 4 Slot 5
3.5-inch rear two
hard-disk-drive kit

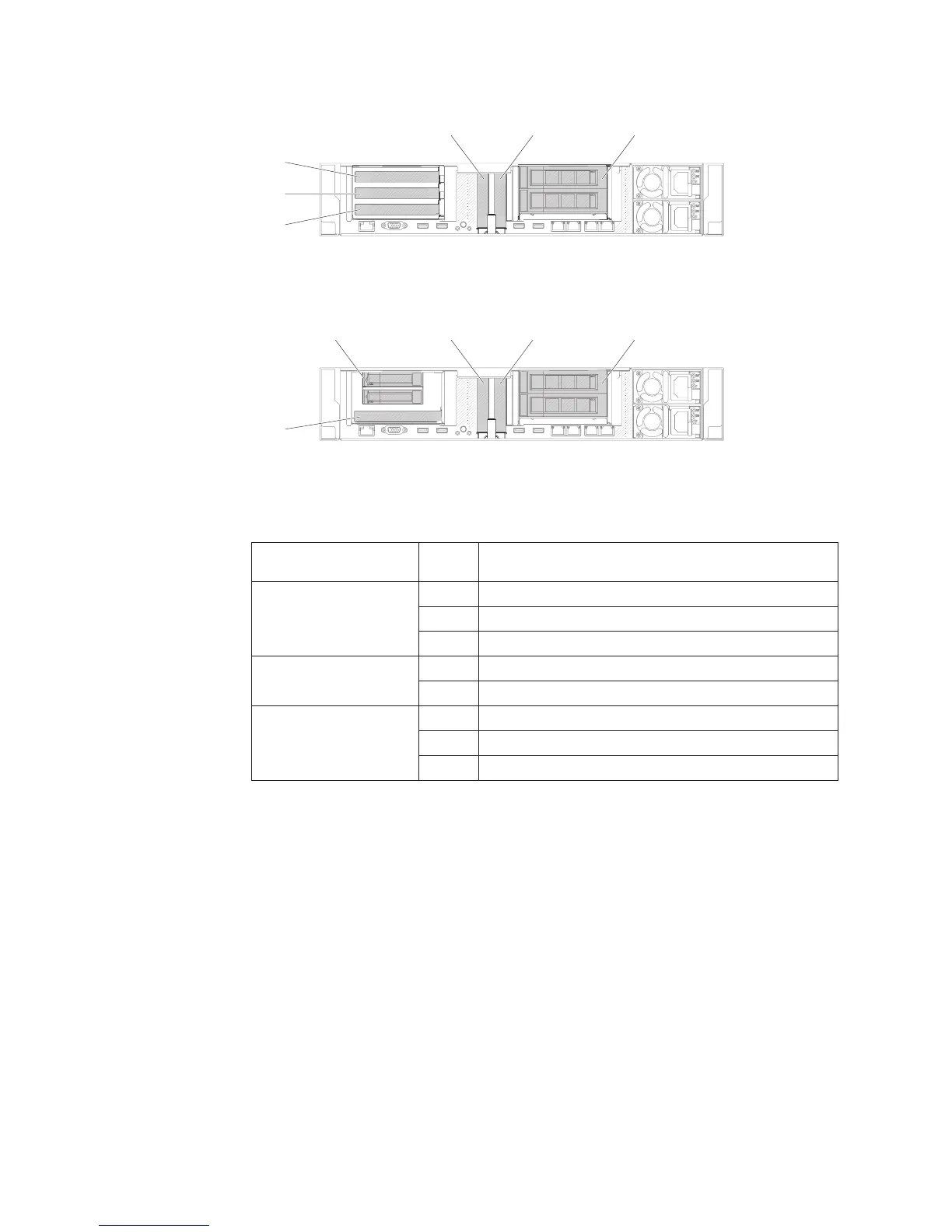

Figure 113. PCI riser-card adapter expansion slot locations
Slot 4 Slot 5
3.5-inch rear two
hard-disk-drive kit
Slot 3
2.5-inch rear two
hard-disk-drive kit
Figure 114. PCI riser-card adapter expansion slot locations
186 System x3650 M5 Type 5462: Installation and Service Guide
