IBM System x3650 M5 User Manual

Replacing the rear two hard-disk-drive kit
Use this information to replace the rear two hard-disk-drive kit on the system
board.
About this task
Note: Please refer to the following rules before you install the rear two
hard-disk-drive kit.
v 2.5-inch hot-swap hard disk drive model
– Supports one 2.5-inch rear two hard-disk-drive kit
v 3.5-inch hot-swap hard disk drive model
– Supports one 2.5-inch rear two hard-disk-drive kit, or
– Supports two 2.5-inch rear two hard-disk-drive kits, or
– Supports one 2.5-inch rear two hard-disk-drive kit and one 3.5-inch rear two
hard-disk-drive kit
To install the rear two hard-disk-drive kit, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 283.
2. Turn off the server and peripheral devices and disconnect all power cords.
3. Remove the top cover (see “Removing the top cover” on page 146).
4. Align the rear two hard-disk-drive kit with the connector on the system board
and align it with the slots on the chassis; then, lower it into the server and
press down firmly until the rear two hard-disk-drive kit is seated correctly in
the connector on the system board
v 2.5-inch rear two hard-disk-drive kit installation
2.5-inch rear two
hard-disk-drive kit 1

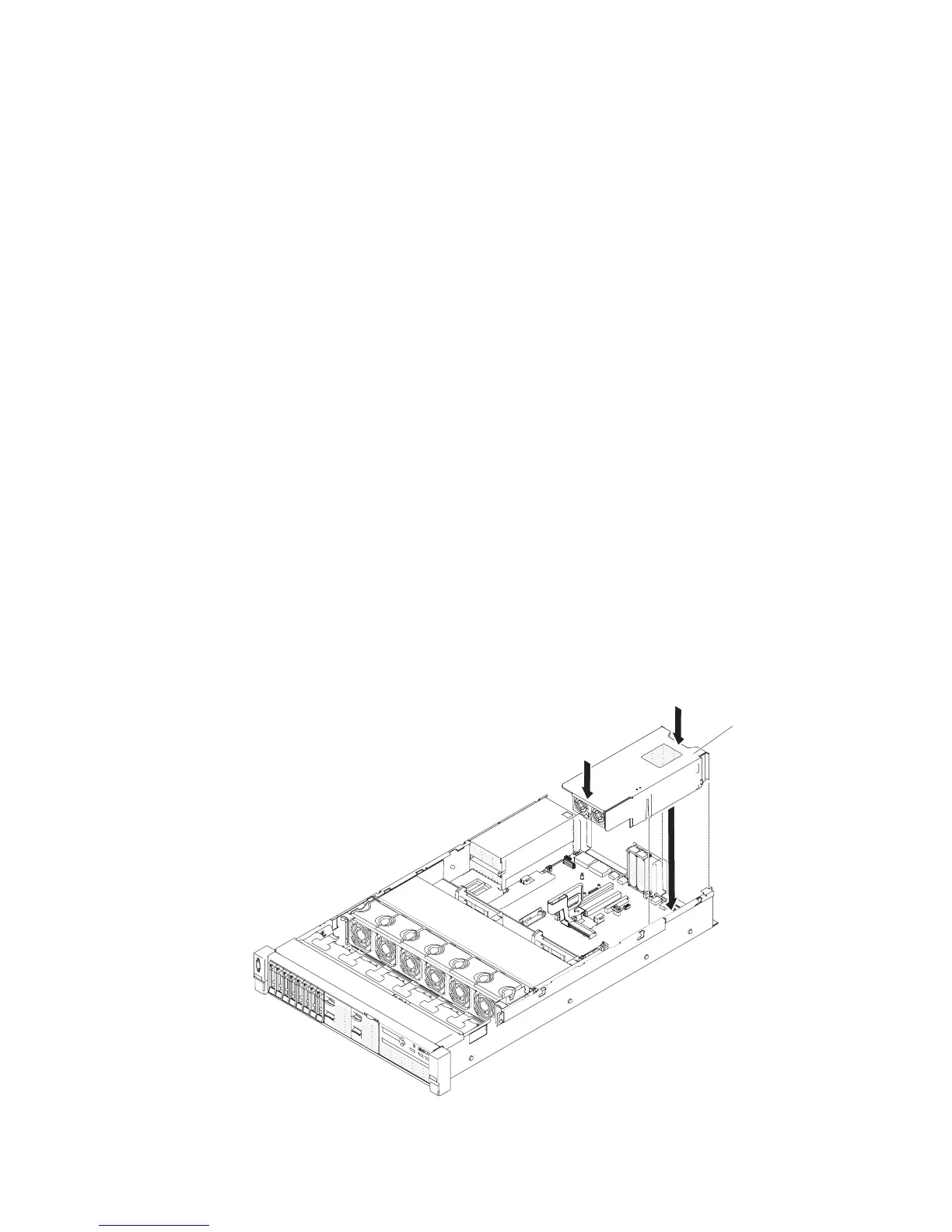

Figure 133. 2.5-inch rear two hard-disk-drive kit installation
202 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
