IBM System x3650 M5 User Manual

– Type 6 PCI riser card
Riser-card assembly LEDs

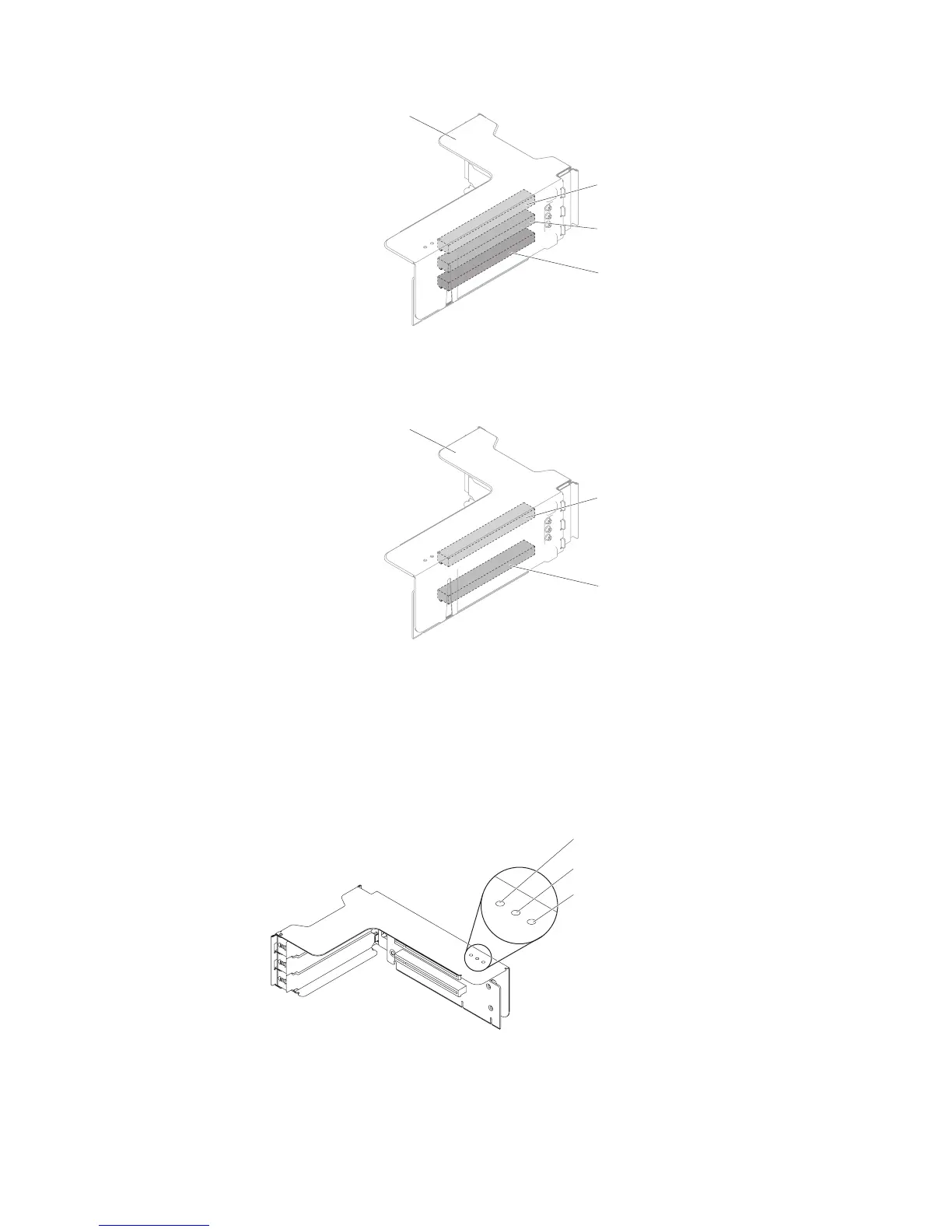

The following illustration shows the light-emitting diodes (LEDs) on the PCI
riser-card assembly.
Note: Error LEDs remain lit only while the server is connected to power.
PCI riser-card assembly
Slot 6, PCIe x8
Slot 8, PCIe x8
Slot 7, PCIe x8
Figure 33. Type 5 PCI riser card
PCI riser-card assembly
Slot 6, PCIe x16
Slot 8, PCIe x8
Figure 34. Type 6 PCI riser card
Upper PCI slot error LED
Center PCI slot error LED
Lower PCI slot error LED
Figure 35. Riser-card assembly LEDs
Chapter 1. The System x3650 M5 server 35

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
