IBM System x3650 M5 - Page 50

– Type 2 PCI riser card
– Type 3 PCI riser card
– Type 4 PCI riser card
v Riser-card assembly 2
– Type 5 PCI riser card
PCI riser-card assembly
Slot 1, PCIe x8
Slot 3, ML2
Slot 2, PCIe x8

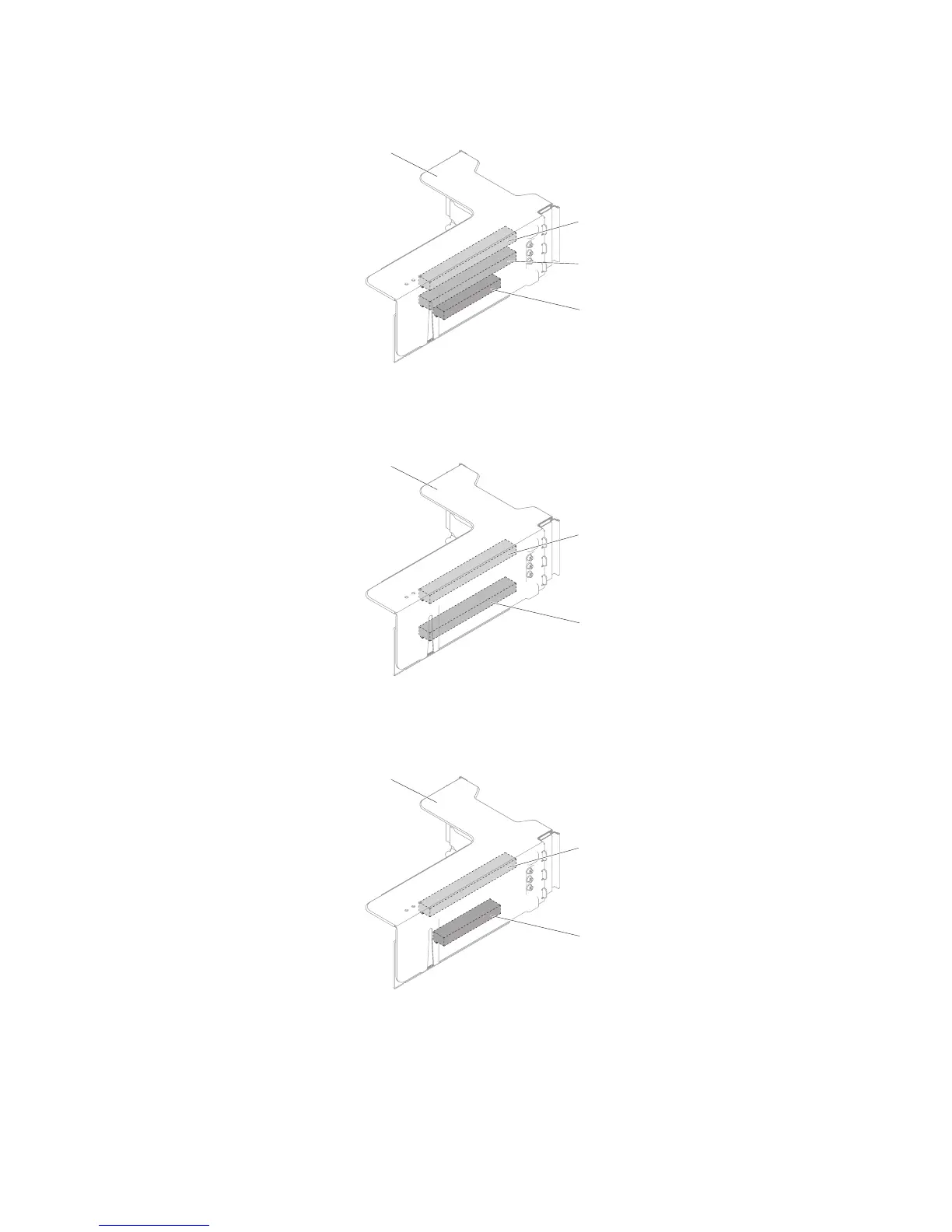

Figure 30. Type 2 PCI riser card
PCI riser-card assembly
Slot 1, PCIe x16
Slot 3, PCIe x8
Figure 31. Type 3 PCI riser card
PCI riser-card assembly
Slot 1, PCIe x16
Slot 3, ML2
Figure 32. Type 4 PCI riser card
