3.5-inch hard disk drive cable connection
The following illustrations show the cabling information for the 3.5-inch drive
models.
Important: Make sure all SAS cables are routed lower than the DIMM latches.
8x3.5-inch drive model
The internal routing for the 8x3.5-inch drive model cables.
The following illustration shows the internal routing for the 8x3.5-inch drive model
cables.
8x3.5-inch simple-swap hard disk drive model
v 8x3.5-inch simple-swap hard disk drive with hardware RAID
v 8x3.5-inch simple-swap hard disk drive with software RAID
SAS signal cable
Power / configuration
cable

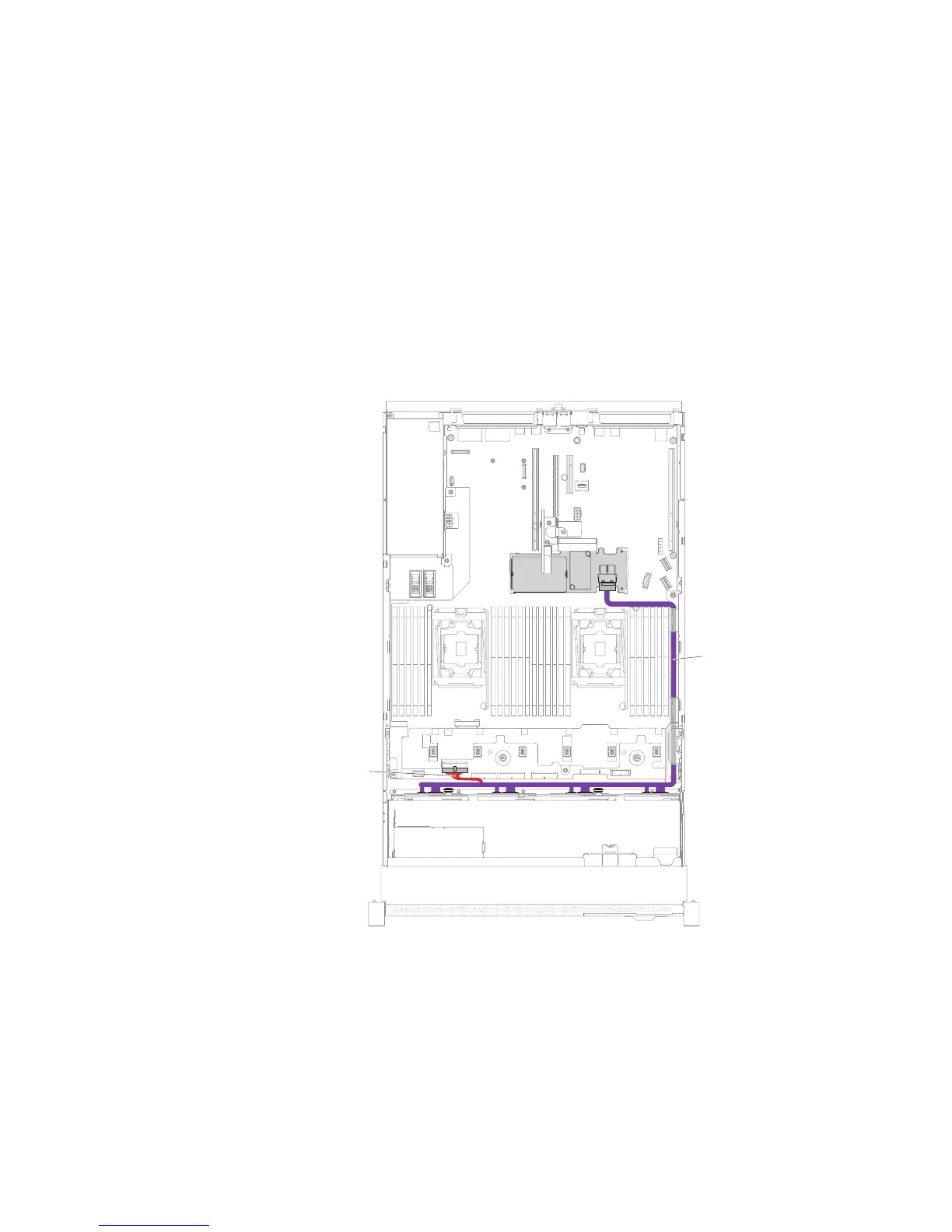

Figure 64. 8x3.5-inch simple-swap hard disk drives with hardware RAID cabling
142 System x3650 M5 Type 5462: Installation and Service Guide
