2.5-inch hard disk drive cable connection
The following illustrations show the cabling information for the 2.5-inch drive
models.
Important: Make sure all SAS cables are routed lower than the DIMM latches.
8x2.5-inch drive model
The internal routing for the 8x2.5-inch drive model cables.
The following illustration shows the internal routing for the 8x2.5-inch drive model
cables.
8x2.5-inch simple-swap hard disk drive model
v 8x2.5-inch simple-swap hard disk drive with hardware RAID
v 8x2.5-inch simple-swap hard disk drive with software RAID
SAS signal cable
Power / configuration
cable

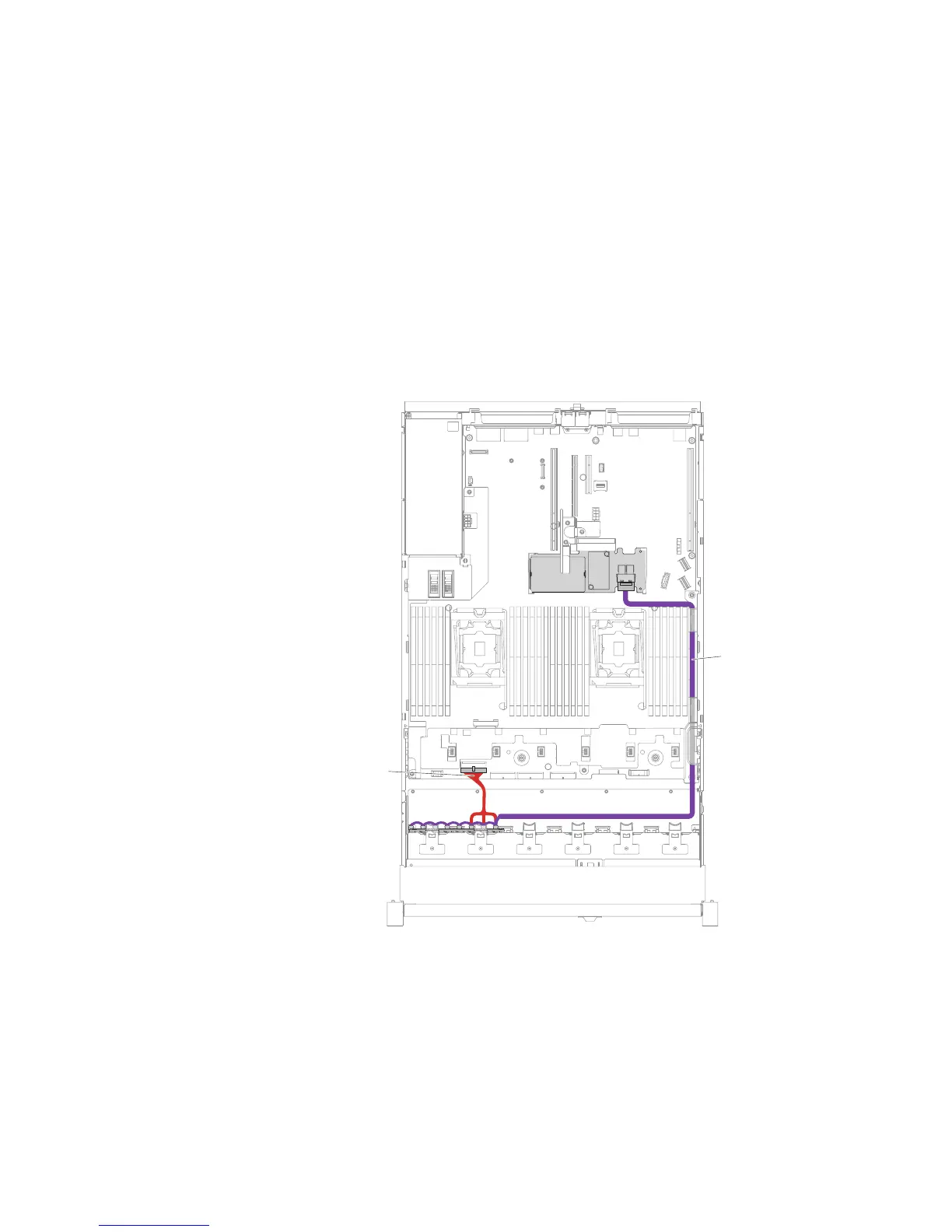

Figure 49. 8x2.5-inch simple-swap hard disk drive with hardware RAID cabling
Chapter 5. Removing and replacing components 133
