IBM System x3650 M5 User Manual

v If you are removing an adapter from PCI expansion slot 1, 2, or 3, remove
riser-card assembly 1.
v If you are removing an adapter from PCI expansion slot 6, 7 or 8, remove
riser-card assembly 2.
5. Disconnect any cables from the adapter (make note of the cable routing, in
case you reinstall the adapter later).
6. If you are removing a full-height, full-length adapter, pull the shipping
bracket out of the riser-card assembly.
7. ▌1▐Slide the retention bracket; then, ▌2▐rotate it to the open position.
8. Remove the screws if present. These screws can be fastened to the side of the
riser-card assembly for storage if needed.
9. Carefully grasp the adapter by its top edge or upper corners, and pull the
adapter from the PCI expansion slot.
10. If you are instructed to return the adapter, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Shipping bracket
PCI riser assembly

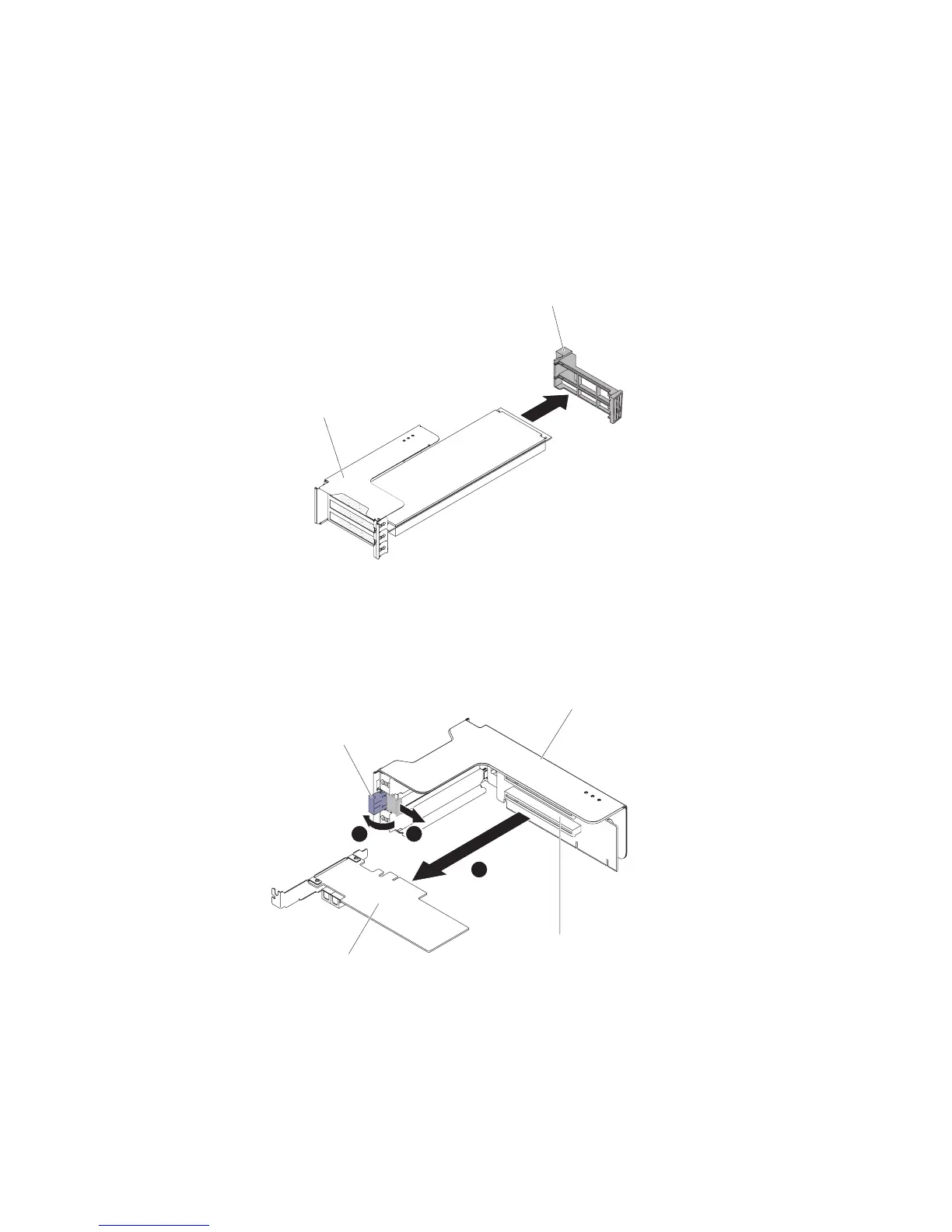

Figure 115. Full-height, full-length adapter
1
3
2
Adapter
Adapter connector
Bracket
PCI riser-card assembly
Figure 116. Adapter removal
Chapter 5. Removing and replacing components 187

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
