5. Connect the cable on the front USB assembly to the system board.
The following illustration shows the cable routing for the front USB assembly.
Note: To connect the front USB assembly cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to
the cable or connector.
6. Replace the top cover (see “Replacing the top cover” on page 147).

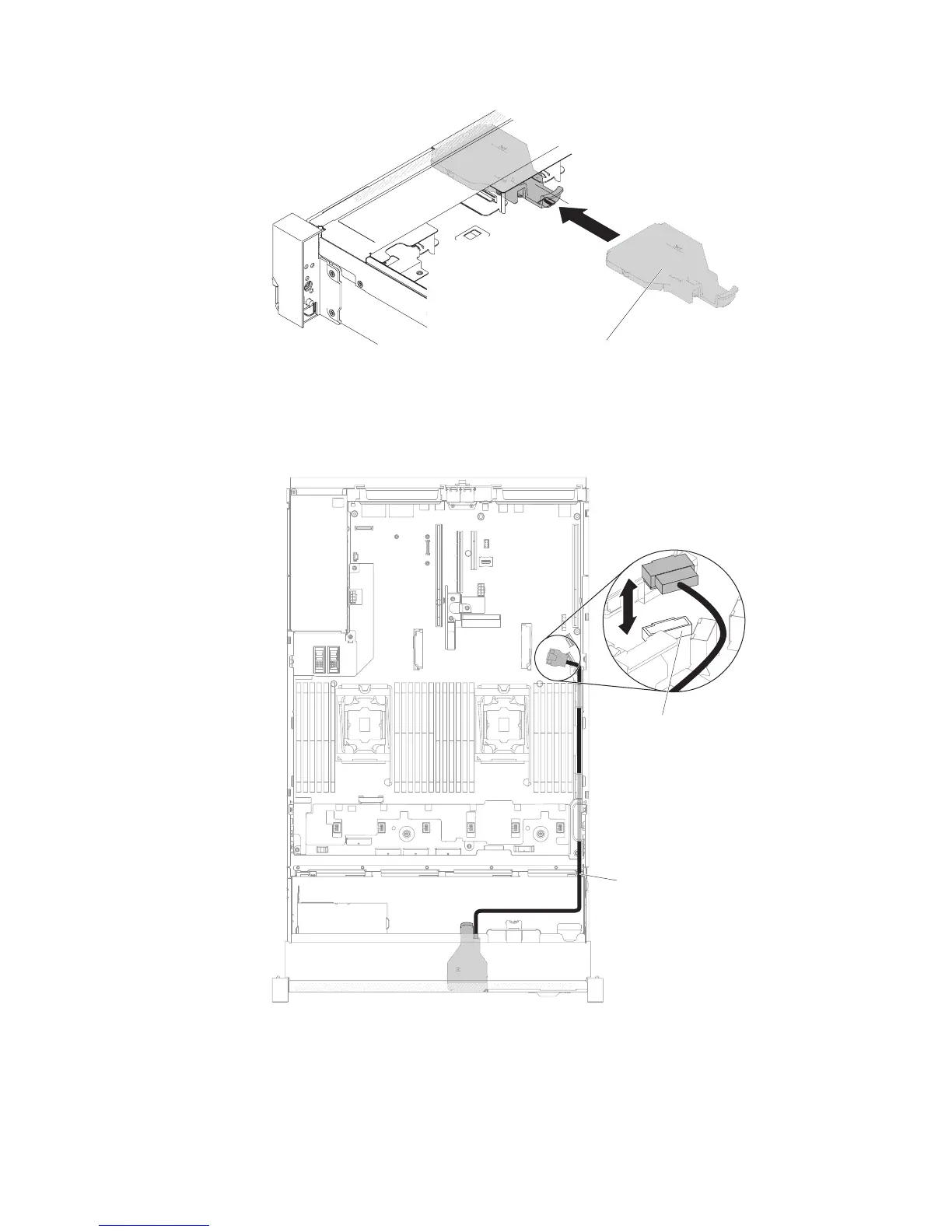

Front USB assembly
Figure 75. Front USB assembly installation
Front USB cable
Front USB connector
Figure 76. Front USB assembly cable routing
Chapter 5. Removing and replacing components 153
