IBM System x3650 M5 User Manual

v For twelve 3.5-inch hot-swap hard disk drive backplane
8. Rotate the backplate assembly/backplane toward the rear of the server and lift
the backplate assembly/backplane up to remove it from the server.
9. If you are instructed to return the hard disk drive backplate
assembly/backplane, follow all packaging instructions, and use any packaging
materials for shipping that are supplied to you.
1
3
2

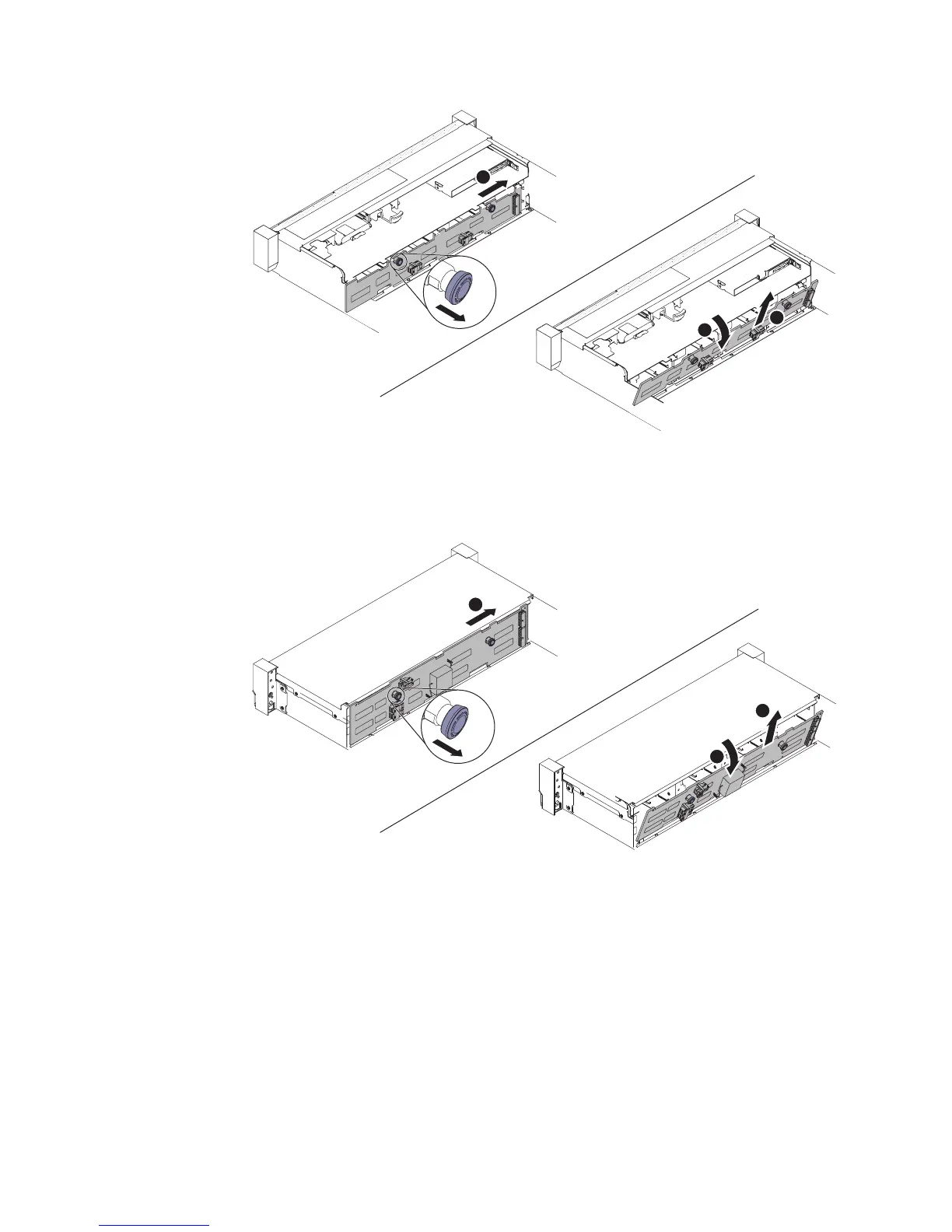

Figure 183. 3.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane
removal
1
2
3
Figure 184. 3.5-inch hot-swap hard disk drive backplane removal
236 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
