IBM System x3650 M5 User Manual

v For twelve 3.5-inch hot-swap hard disk drive backplane
8. Connect the signal and power-configuration cables to the backplane and the
system board. See 3.5-inch hard disk drive cable connection for more
information.
9. Reinstall the hard disk drives and filler panels (see “Replacing a simple-swap
hard disk drive” on page 158).
10. Replace the fan cage assembly and fans if you removed them (see “Replacing
the fan cage assembly” on page 173 and “Replacing a hot-swap fan” on page
175).
11. Install the top cover (see “Replacing the top cover” on page 147).
12. Slide the server into the rack.
13. Reconnect the power cords and any cables that you removed.
3
2
1

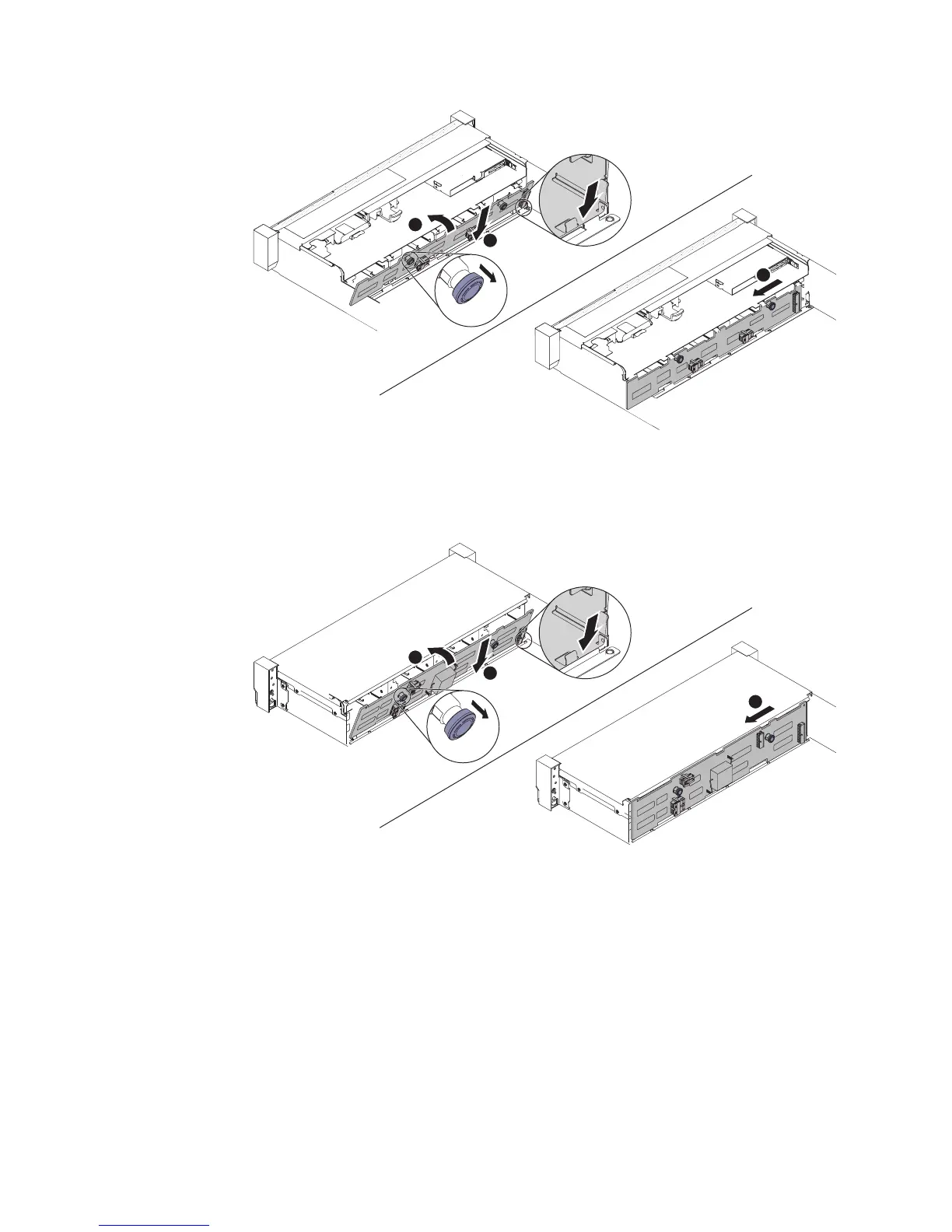

Figure 185. Eight 3.5-inch simple-swap backplate assembly/hot-swap hard disk drive
backplane
3
2
1
Figure 186. 3.5-inch hot-swap hard disk drive backplane installation
238 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
