8. Connect the cable to the rear of the LCD system information display panel.
9. Slide the LCD panel assembly into the server until it clicks into place.
10. Connect the LCD panel assembly cable to the system board.

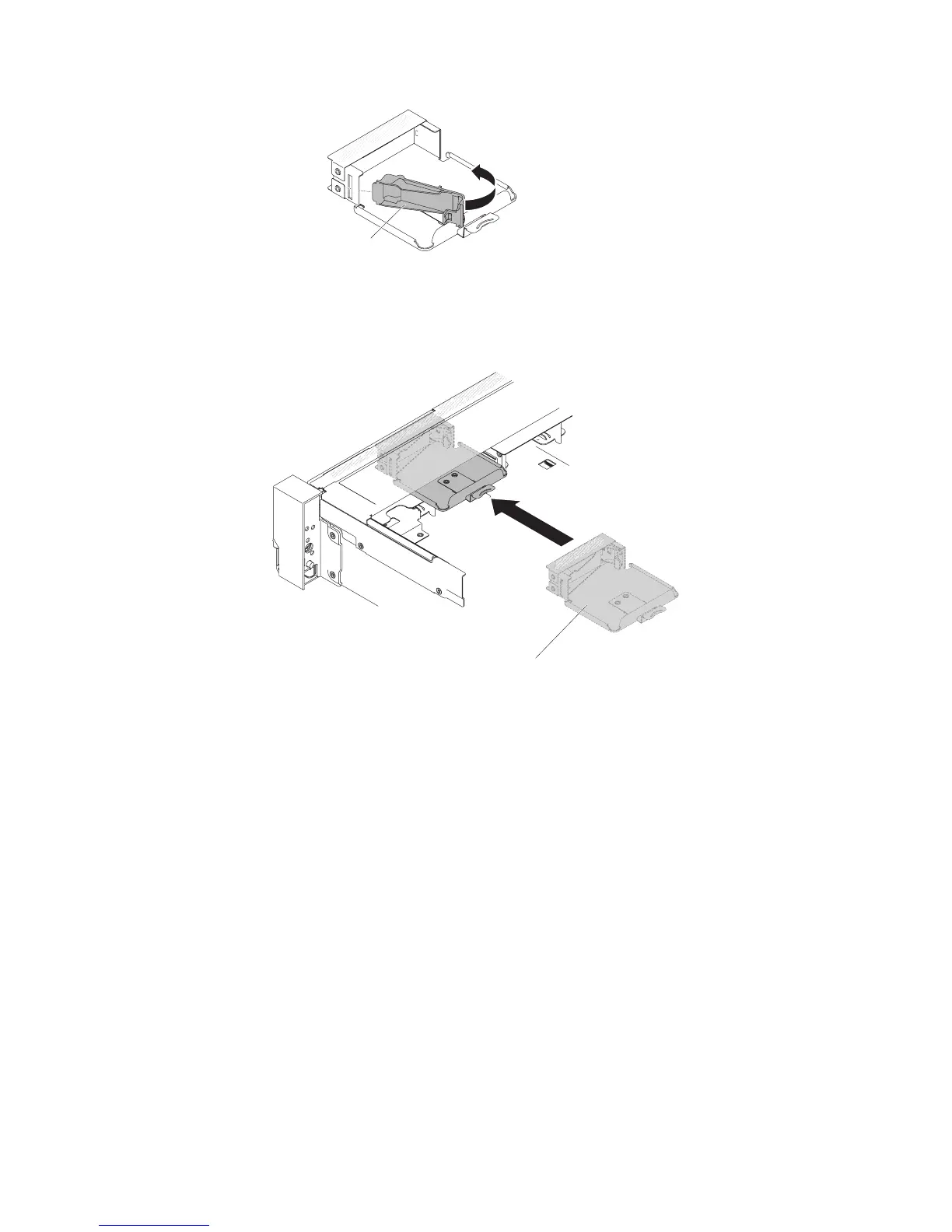

The following illustration shows the cable routing for the LCD panel
assembly.
Retention bracket
Figure 200. Retention bracket installation
LCD panel assembly
Figure 201. LCD panel assembly installation
Chapter 5. Removing and replacing components 249
