a. Disengage the three snaps on the media cage bezel from the media cage.
The following illustration shows the location of three snaps.
b. Lift the bezel upwards; then, pivot and rotate the bezel along the hooks to
remove it from the media cage.
7. ▌1▐Pull the tab on the LCD retention bracket to the left to disengage the
retention bracket. ▌2▐Rotate the retention bracket to remove it from the server.
Snaps
Hooks

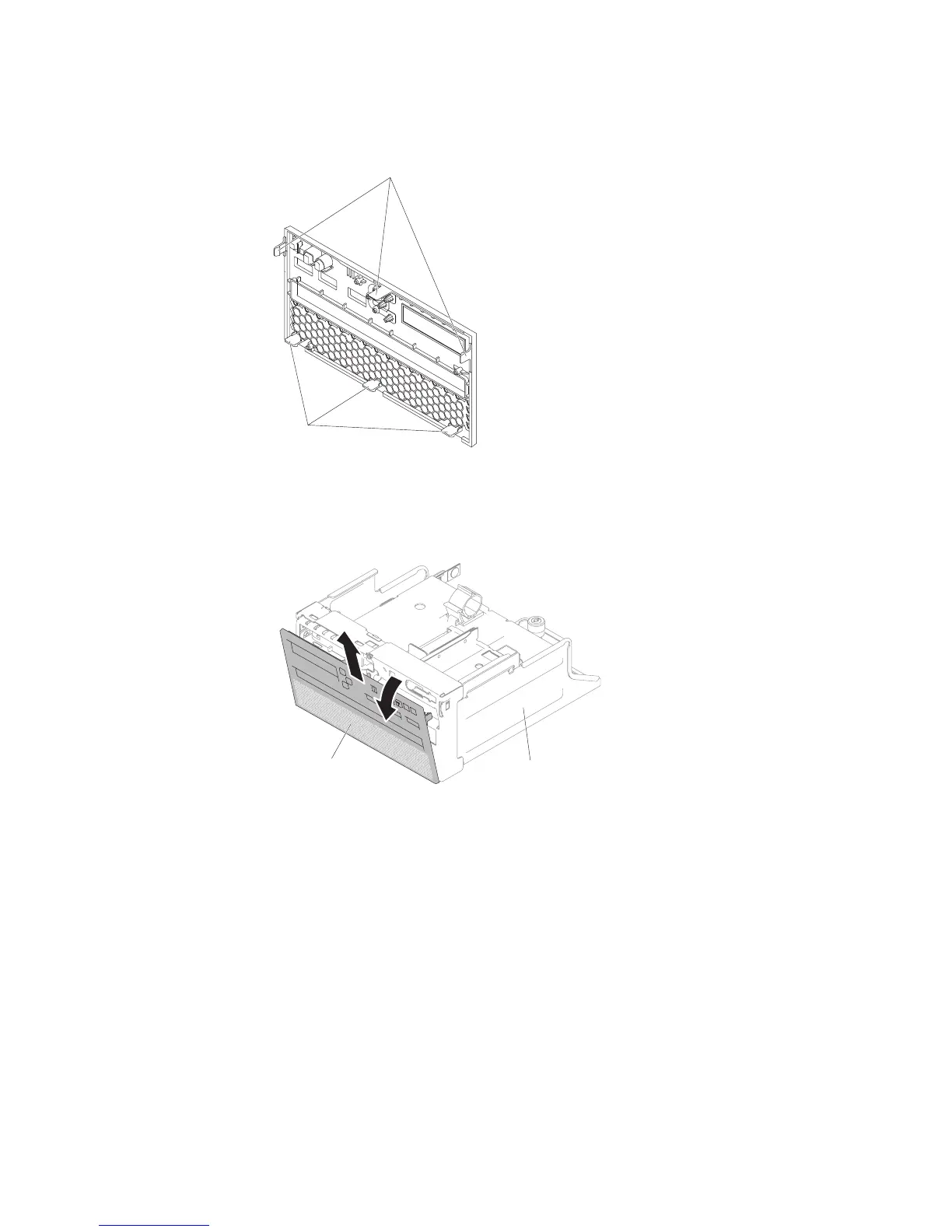

Figure 203. Snaps (the rear side of the media cage)
Media cage
Media cage bezel
Figure 204. Media cage bezel removal
Chapter 5. Removing and replacing components 251
