10. If you have removed the media cage bezel, install the new media cage bezel
with LCD opening and buttons. Angle the media cage bezel and insert the
three hooks on the rear side of the media cage bezel into slots on the media
cage. The following illustration shows the location of three hooks.
11. Rotate the media cage bezel and snap it into place.
Media cage
Retention bracket

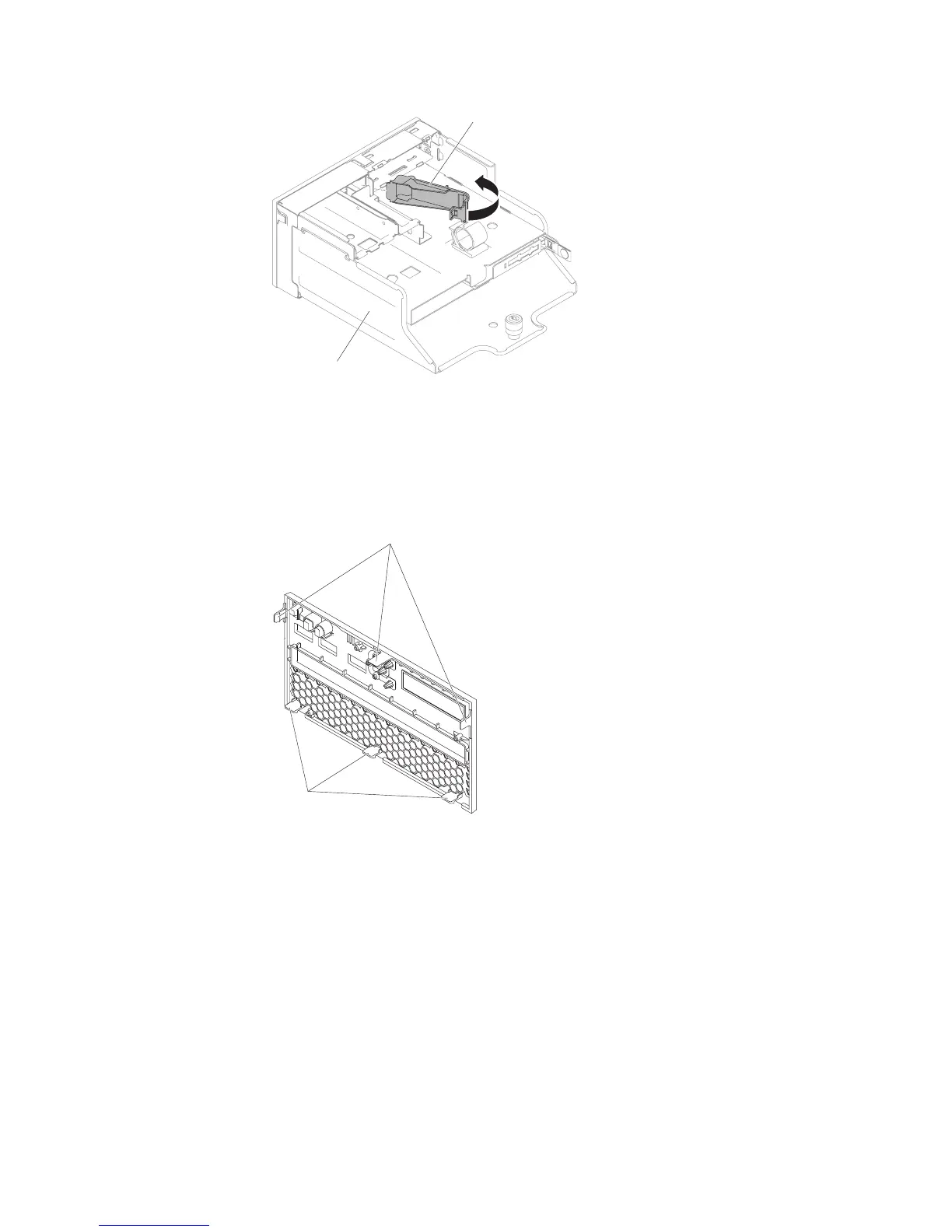

Figure 207. Retention bracket installation
Snaps
Hooks
Figure 208. Hooks (the rear side of the media cage)
Chapter 5. Removing and replacing components 253
