b. Lift the heat sink out of the server. After removal, place the heat sink (with
the thermal grease side up) on a clean, flat surface.
8. Open the microprocessor socket release levers and retainer.
Heat sink
release lever

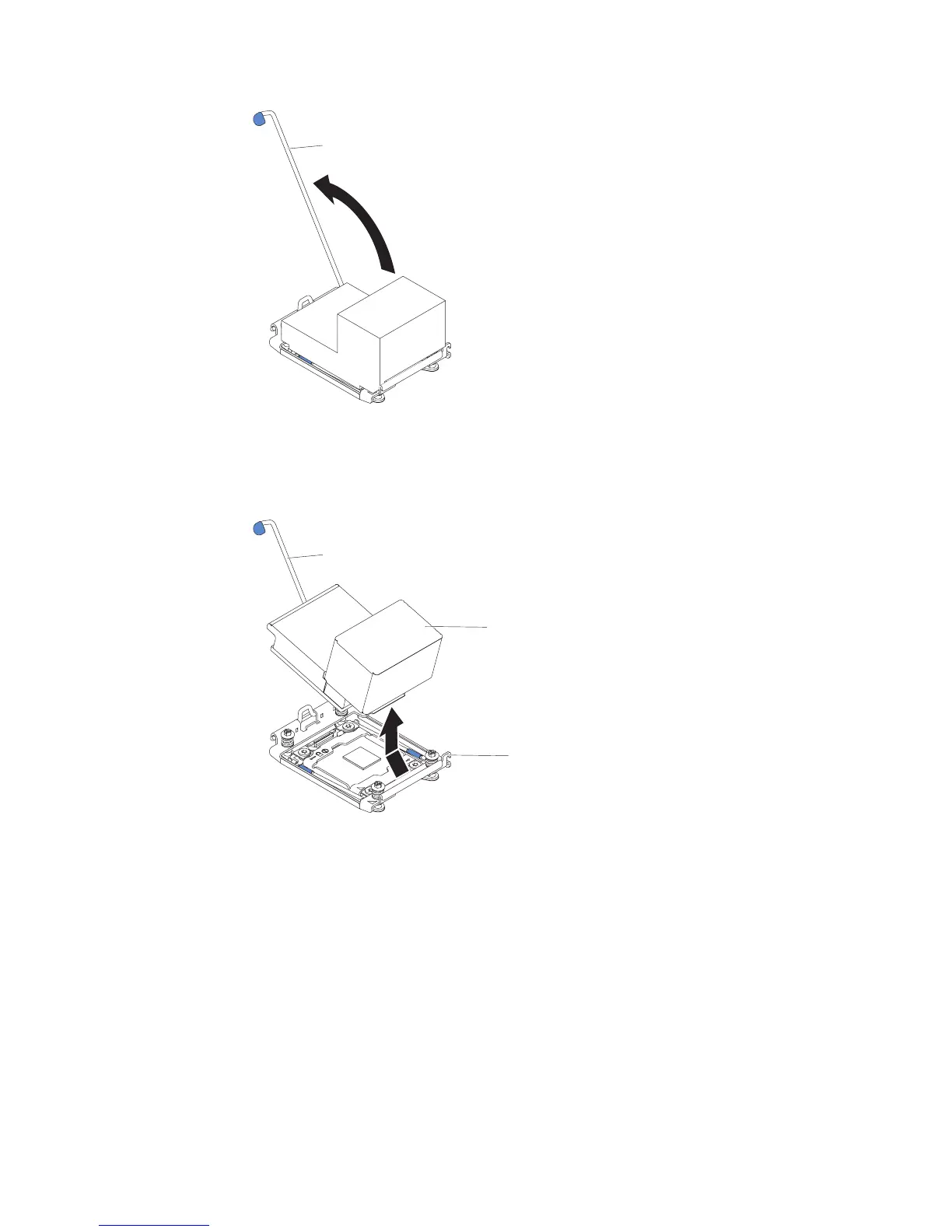

Figure 216. Heat sink retention module release lever
Heat sink
release lever
Lock tab
Heat sink
Figure 217. Heat sink removal
260 System x3650 M5 Type 5462: Installation and Service Guide
