IBM System x3650 M5 User Manual

The following illustrations show the installation tool in the locked and
unlocked positions.
b. Align the installation tool with the screws, as shown in the following
graphic, and lower the installation tool on the microprocessor. The
installation tool rests flush on the socket only when it is aligned correctly.
H

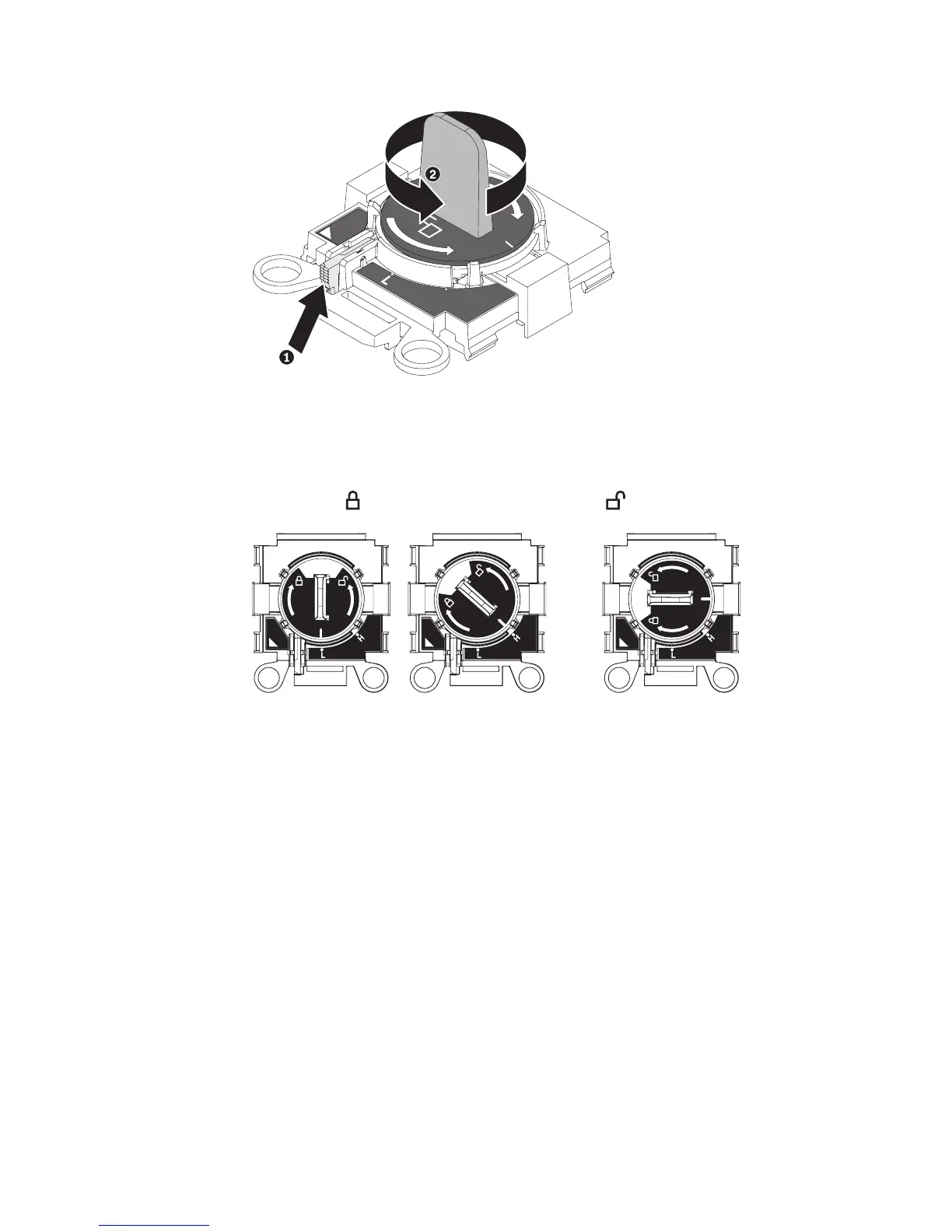

Figure 219. Installation tool handle adjustment
E5-x6xx v3
E5-x6xx v4
E5-x6xx v3
E5-x6xx v4
E5-x6xx v3
E5-x6xx v4
Lock Position
Unlock Position
Figure 220. Locked and unlocked positions
262 System x3650 M5 Type 5462: Installation and Service Guide

IBM System x3650 M5 Specifications

General

Processor Cores	Up to 22 cores per processor
Memory Slots	24 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon E5-2600 v3/v4
Memory	Up to 1.5 TB (24x 64 GB LRDIMMs)
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4x 1 GbE ports standard, optional 10 GbE
Power Supply	Up to 2x redundant hot-swap 550W, 750W, or 900W power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	Integrated Management Module (IMM) v2.1
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
