15. ▌1▐Loosen the two thumbscrews (located near the front of the server) that
secure the system board to the server and ▌2▐slide the system board toward
the front of the server.
16. Grasp both system-board handles and lift up the left side of the system board
slightly and carefully remove it from the chassis, being careful not to damage
any surrounding components.
Note: Use the system-board handles to lift the system board only. Do not
attempt to lift the server using the system board handles.
17. ▌1▐Push the system board toward the broadside of the server and ▌2▐lift the
system board up.
Thumb screws
System board handles

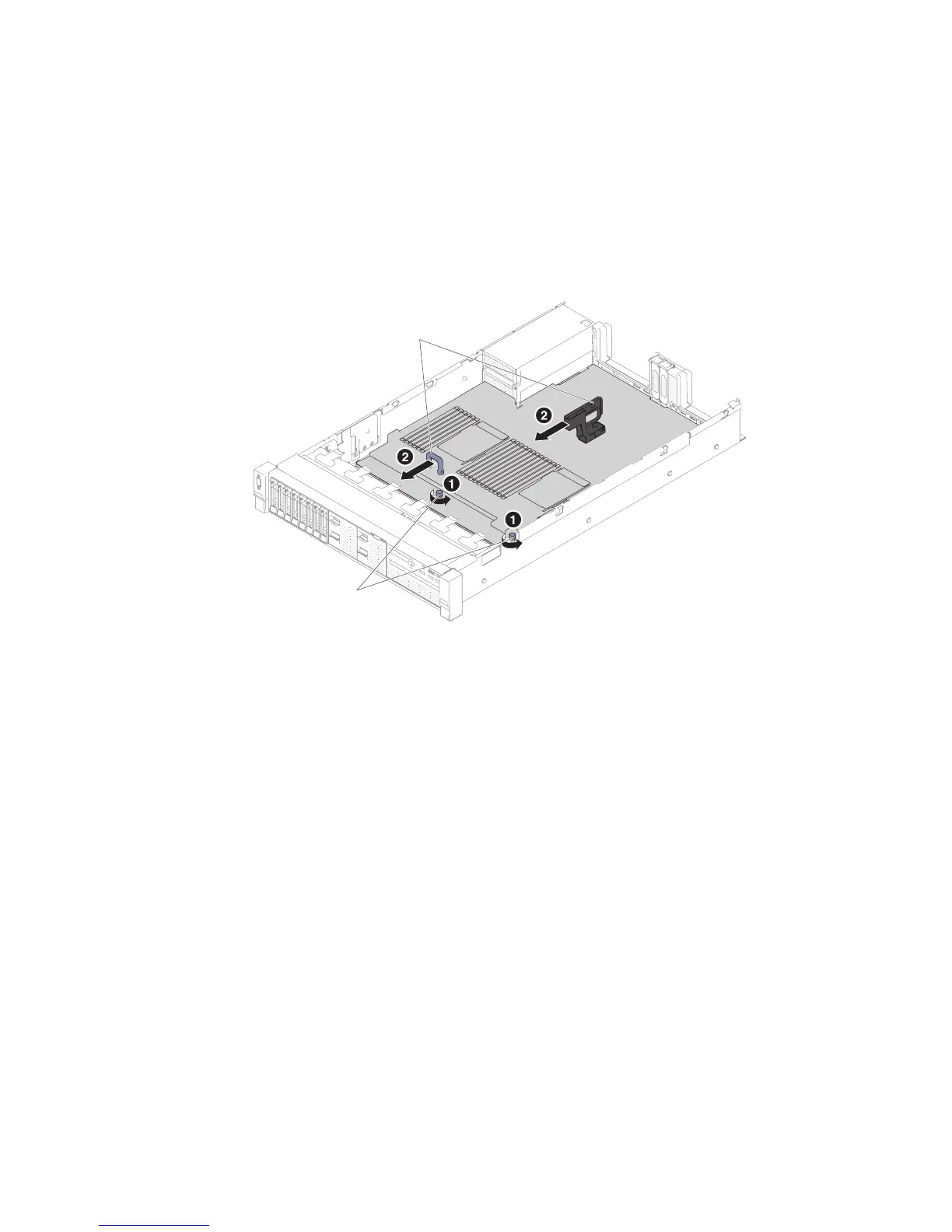

Figure 241. System board removal
