IBM System x3650 M5 User Manual

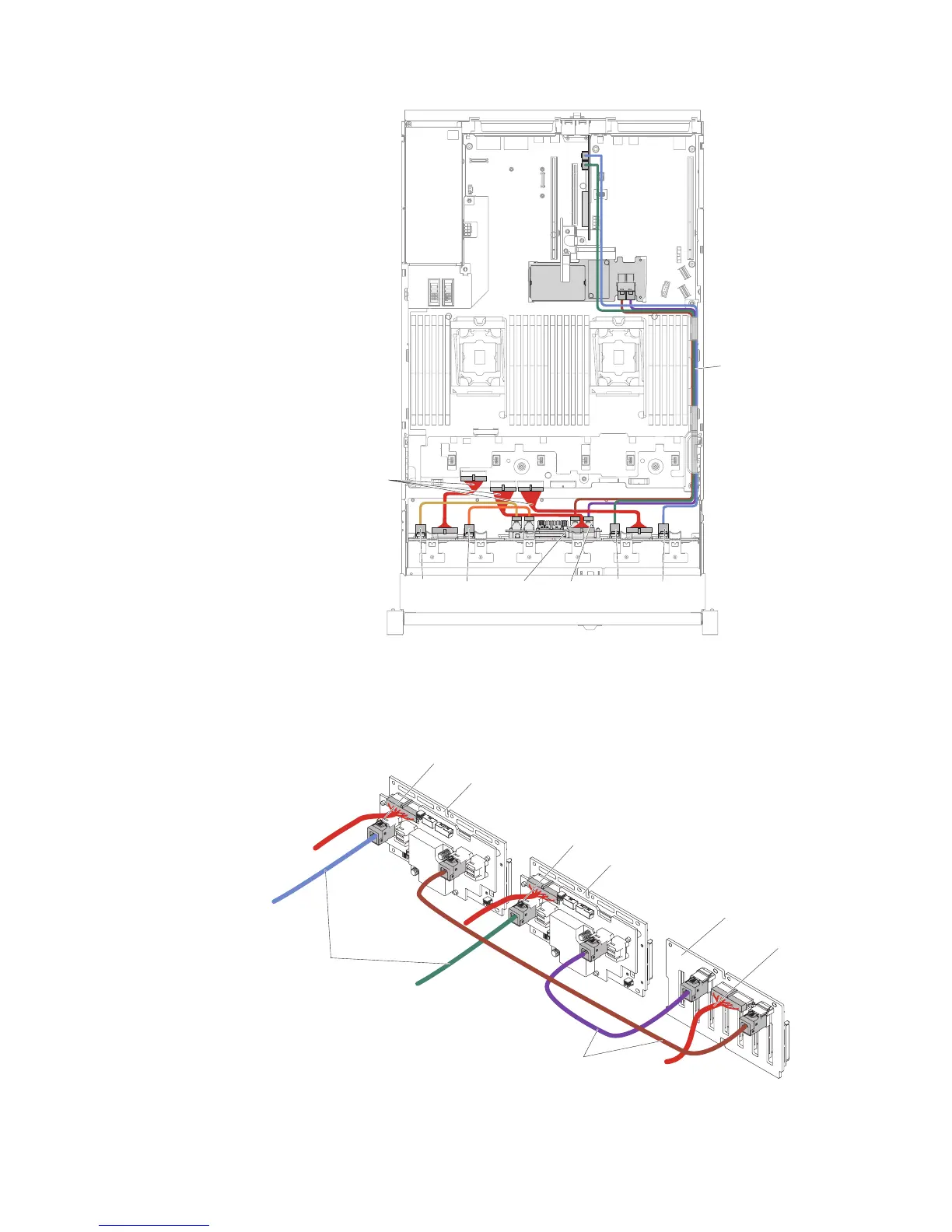

b. If the expander is installed in slot 2, connect and route cables as the
following illustrations.
SAS signal cables
Power / configuration
cables
SAS 0
SAS 1
SAS 0
SAS 1
SAS 1
SAS 0
Figure 262. Cable routing
2.5-inch HDD hot-swap backplane
Power / configuration cable
SAS signal cable
Power / configuration cable
2.5-inch HDD hot-swap
backplane (expander)
Power / configuration cable
2.5-inch HDD hot-swap
backplane (expander)
SAS signal cable
Figure 263. Cable connections
Chapter 5. Removing and replacing components 301

IBM System x3650 M5 Specifications

General

Brand	IBM
Model	System x3650 M5
Category	Server
Language	English
