IBM x3630 M3 7377 User Manual

1b
2
3
4
6
7
8a
9
10
11
12a
15a
16
17
18
19
20
5
14b
13b
12b
1a
13a
14a
15b
21
8b
15c

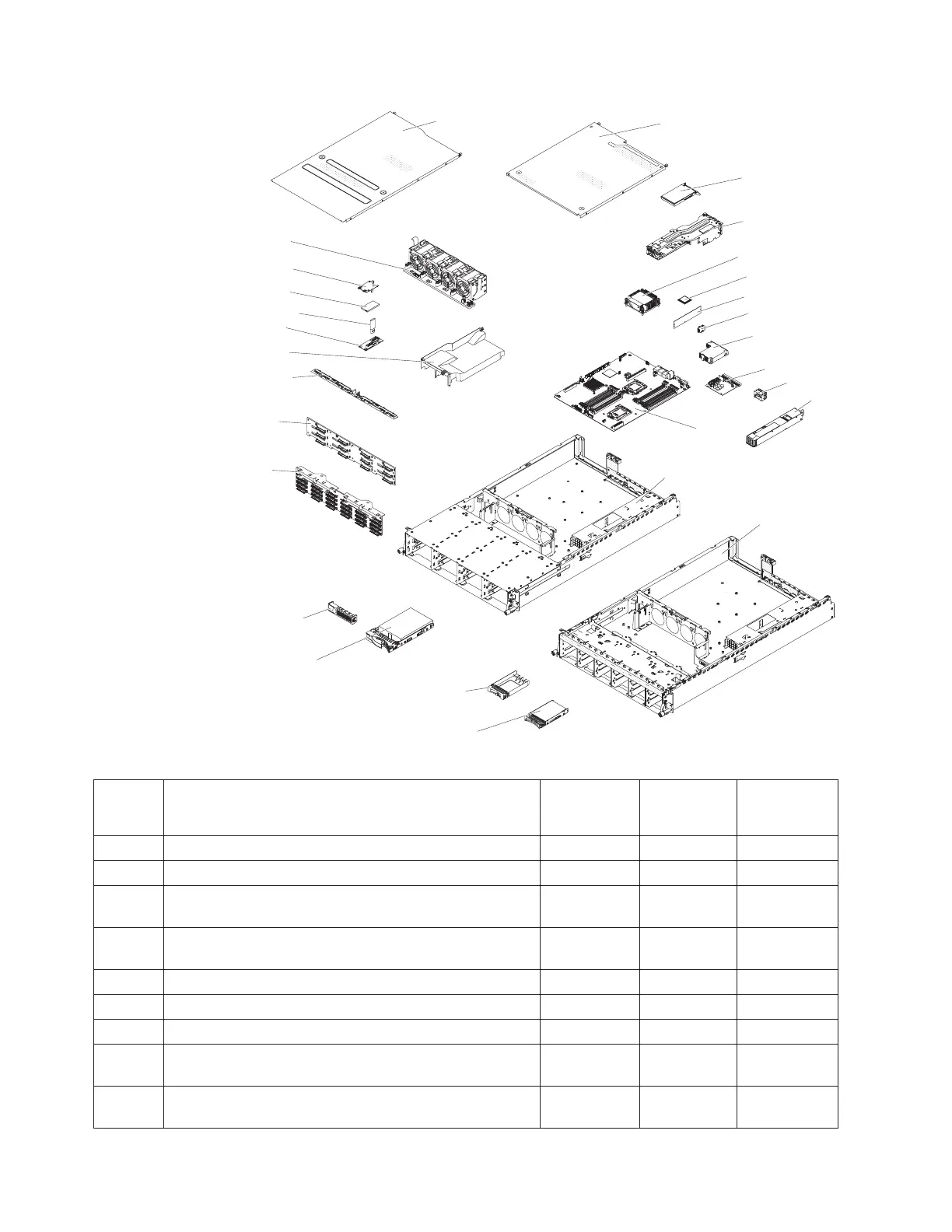

Table 8. Parts listing, Type 7377
Index Description
CRU part
number
(Tier 1)
CRU part
number
(Tier 2)
FRU part
number
1a Cover (for 2.5-inch hot-swap hard disk) 69Y4533
1b Cover (for 3.5-inch hot-swap hard disk) 69Y5273
2 ServeRAID-M1015 SAS/SATA adapter (models 32x and
42x)
46M0861
2 ServeRAID-M5015 SAS/SATA adapter (battery not
included) (models 62x and E2Y)
46M0851
2 ServeRAID-M5014 SAS/SATA adapter (model 22x) 46M0918
3 PCI riser-card assembly 69Y1053
4 Heat sink 69Y4249
5 Microprocessor, Intel Xeon L5609 1.86 GHz, 12 MB, 40 W
(quad core)
69Y0783
5 Microprocessor, Intel Xeon E5603 1.60 GHz, 4 MB, 80 W
(quad core)
81Y5952
126 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
