4. Open the blue latches on the chassis.
5. Rotate the rear hard disk drive cage outwards until it stops.
6. Shift the switch on the rear hard disk drive cage to the lock position so it will not
fall down.
7. If you are instructed to return the rear hard disk drive cage, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.

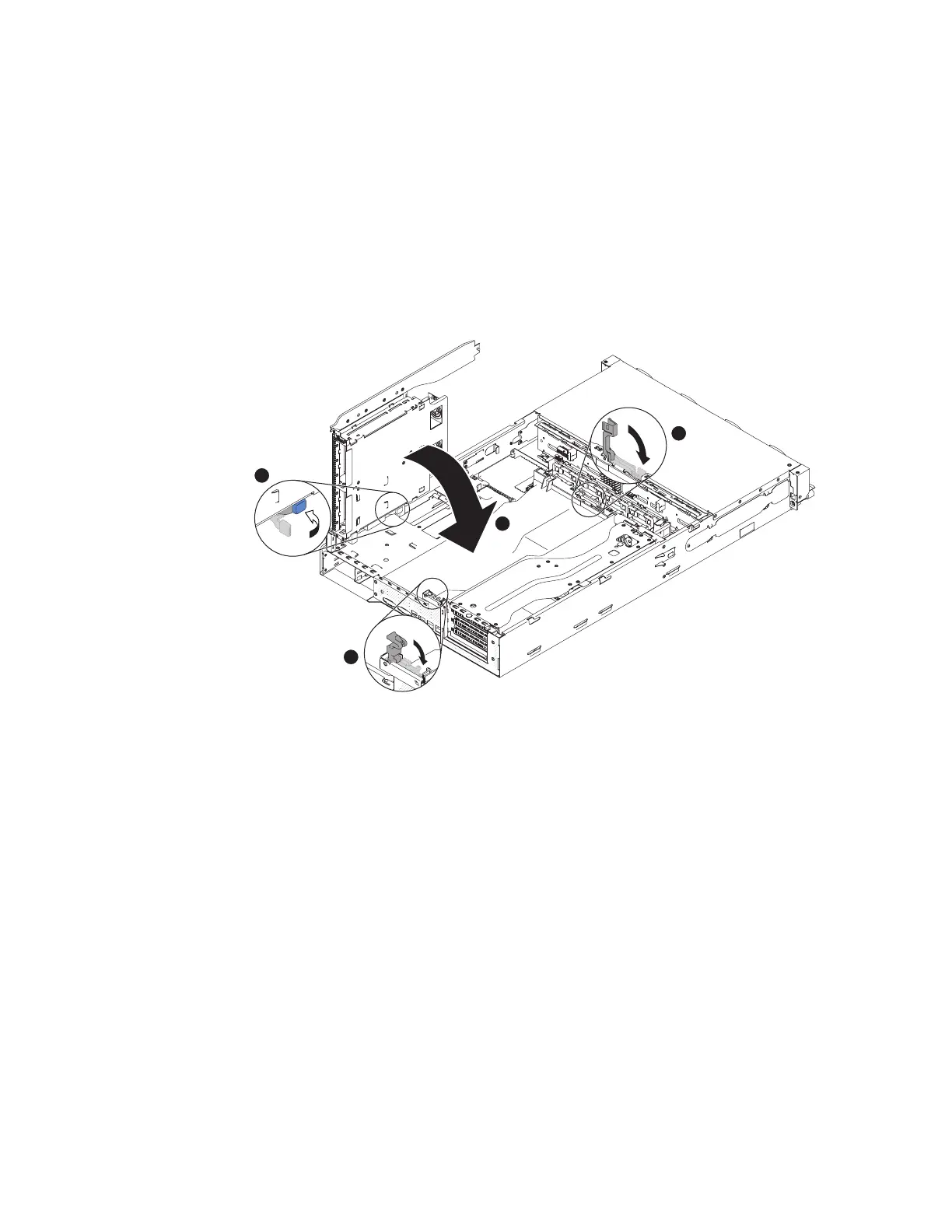

Rotating the optional hot-swap rear hard disk drive cage down
To rotate the optional hot-swap hard disk drive cage down, complete the following
steps.
3
1
2
3
1. Shift the switch on the rear hard disk drive cage to the unlock position.
2. Rotate the cage inward until it sits into place.
3. Close the blue latches on the chassis.
4. Install the cover (see “Installing the cover” on page 146).
5. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.
Removing the air baffle
When you work with some optional devices, you must first remove the air baffle to
access certain components on the system board.
To remove the air baffle, complete the following steps.
148 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide
