6. If you are instructed to return the backplane, follow all packaging instructions,

and use any packaging materials for shipping that are supplied to you.

Installing the fan to the optional rear hard disk drive cage

To install the replacement fan to the optional rear hard disk drive cage, complete

the following steps:

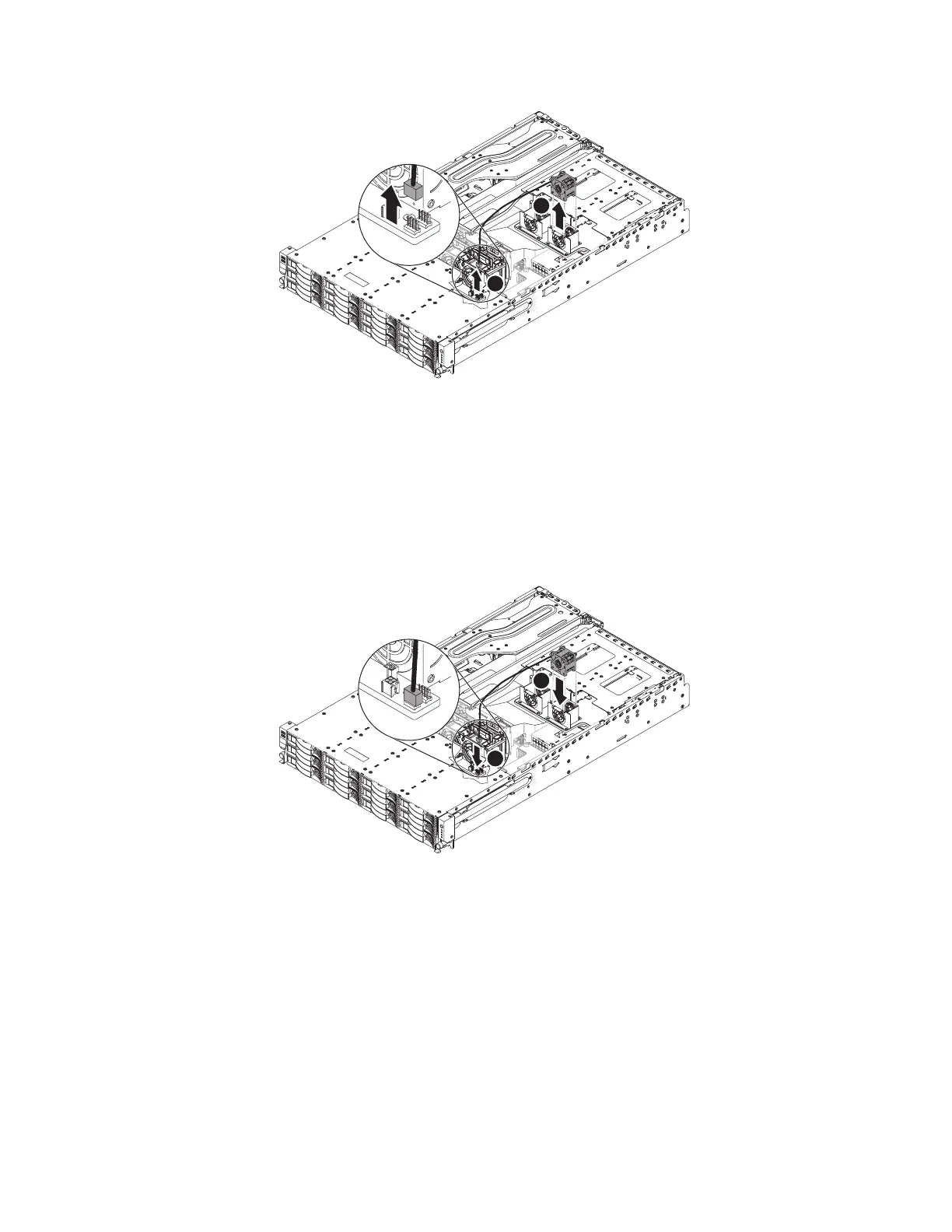

1. Orient the new fan over its position in the fan bracket. Make sure that the fan

cable is on the cave of the fan bracket and the 4 rubber grommets are on the

slots of the fan bracket as well.

2. Reconnect the fan cable to the fan board.

3. Install the cover (see “Installing the cover” on page 146).

4. Reconnect the external cables; then, reconnect the power cords and turn on the

peripheral devices and the server.
