IBM x3630 M3 7377 - Fan Board Connectors; PCI Riser-Card Adapter Connectors

Fan board connectors

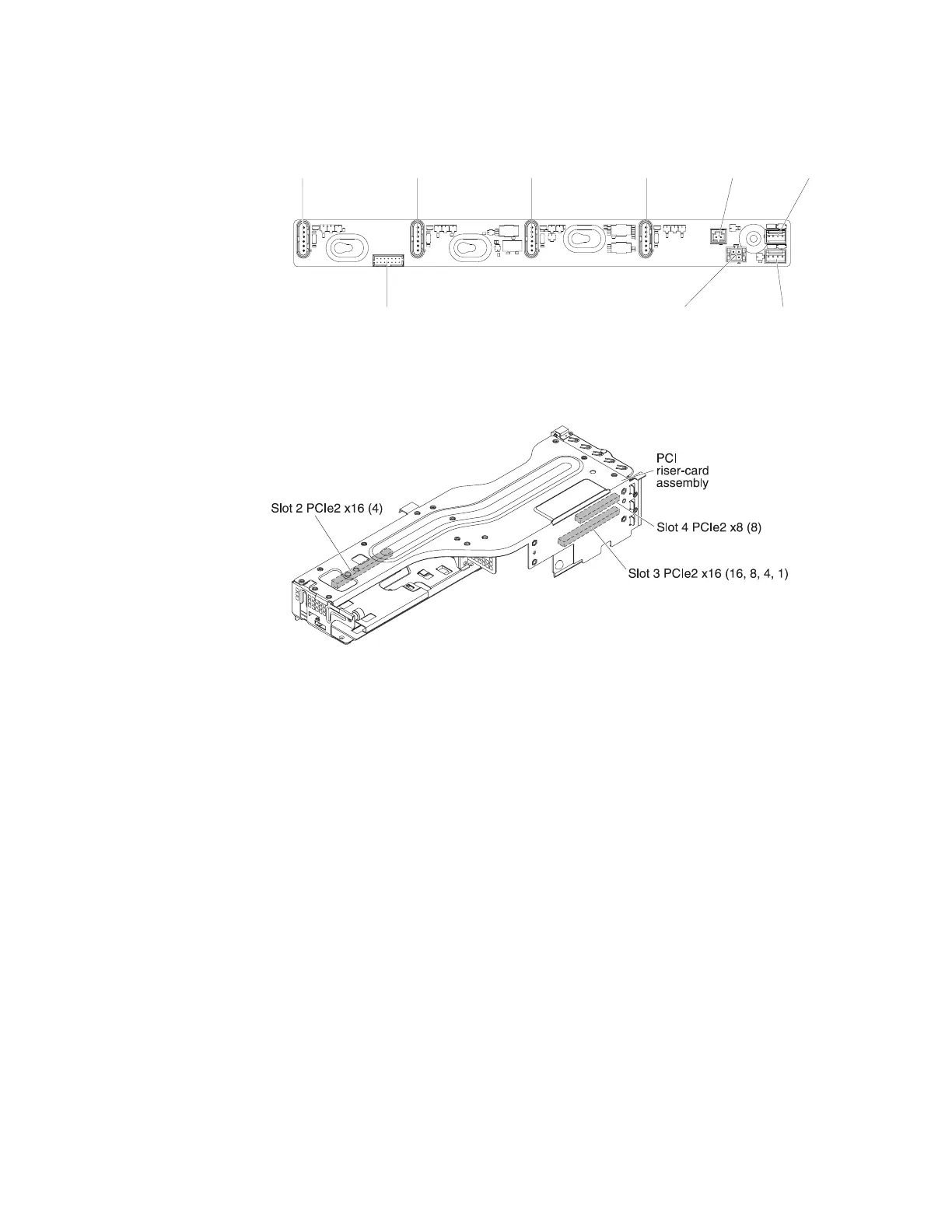

The following illustration shows the connectors on the fan board.
Fan 1 connector Fan 2 connector Fan 3 connector Fan 4 connector
Thermal sensor
connector
Signal connector
Power connector
Fan 6 connector
Fan 5 connector
PCI riser-card adapter connectors
The following illustration shows the connectors on the PCI riser card for
user-installable PCI adapters.
Chapter 2. Introduction 21
