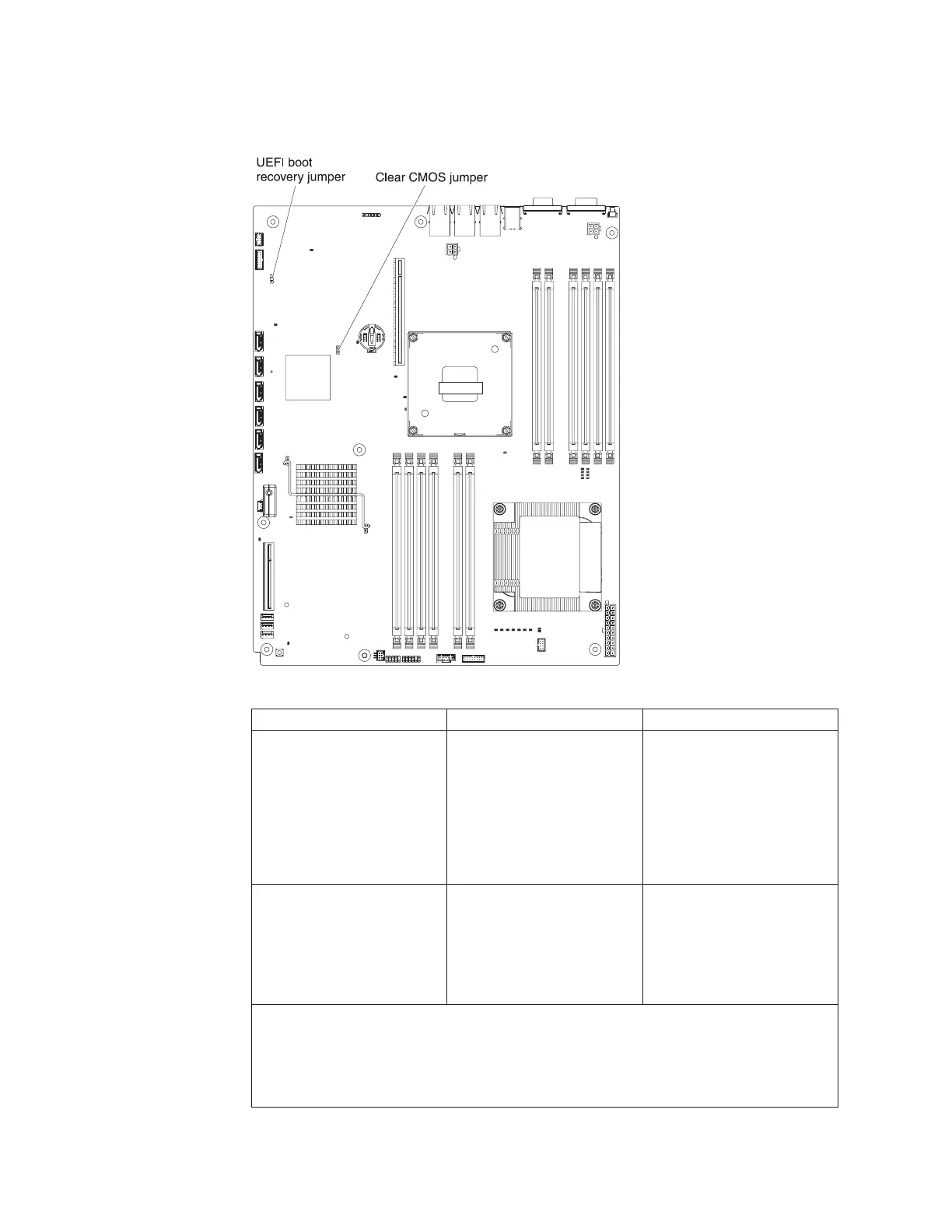

System-board jumpers
This section describes the jumpers on the system board.
Table 3. System board jumpers
Jumper number Jumper name Jumper setting
JP2 Clear CMOS jumper
v Pins 1 and 2: Normal
(default) - This keeps the
CMOS data.
v Pins 2 and 3: This clears
the CMOS data such as
power-on password and
loads the default UEFI
settings.
JP3 UEFI boot recovery jumper
v Pins 1 and 2: Normal
(default) Loads the primary
firmware ROM page.
v Pins 2 and 3: Loads the
secondary (backup)
firmware ROM page.
Notes:
v If no jumper is present, the server responds as if the pins are set to 1 and 2.
v Changing the position of the UEFI recovery jumper from pins 1 and 2 to pins 2 and 3
before the server is turned on sets the UEFI recovery process. Do not change the jumper
pin position after the server is turned on. This can cause an unpredictable problem.
18 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
