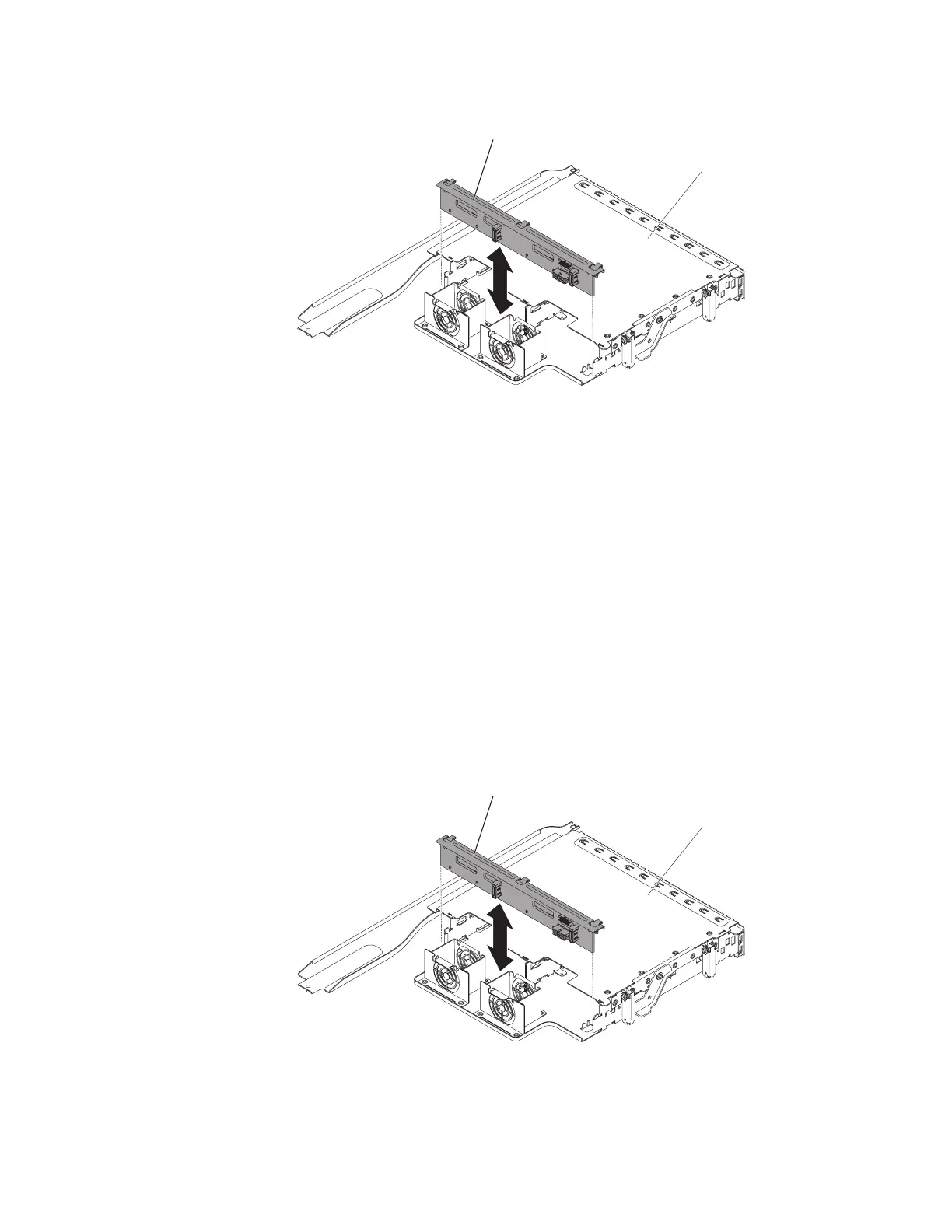

SAS/SATA
backplane
Hard disk
drive cage
6. If you need to replace the backplane, unplug all attached cables.
7. If you are instructed to return the backplane, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Installing the hot-swap backplane on the optional rear hard disk drive
cage
To install the replacement hot-swap backplane on the optional rear hard disk drive
cage, complete the following steps.
1. Reconnect the cables to the backplane.
2. Align the backplane with the slot on the optional rear hard disk drive cage.
3. Lower the backplane into the optional rear hard disk drive cage. Make sure the
locating plates securely engages the bottom of the backplane.
4. Press the release latches; then, rotate the top of the backplane toward the front
of the optional rear hard disk drive cage until it locks into place.
Note: Make sure the backplane is engaged into place by the locating plates
and that it is securely installed in the optional rear hard disk drive cage.
SAS/SATA
backplane
Hard disk
drive cage
5. Install the hot-swap hard disk drives in the optional rear hard disk drive cage
(see “Installing a hot-swap hard disk drive” on page 138).
6. Install the cover (see “Installing the cover” on page 146).
Chapter 5. Removing and replacing server components 187
