IBM x3630 M3 7377 User Manual

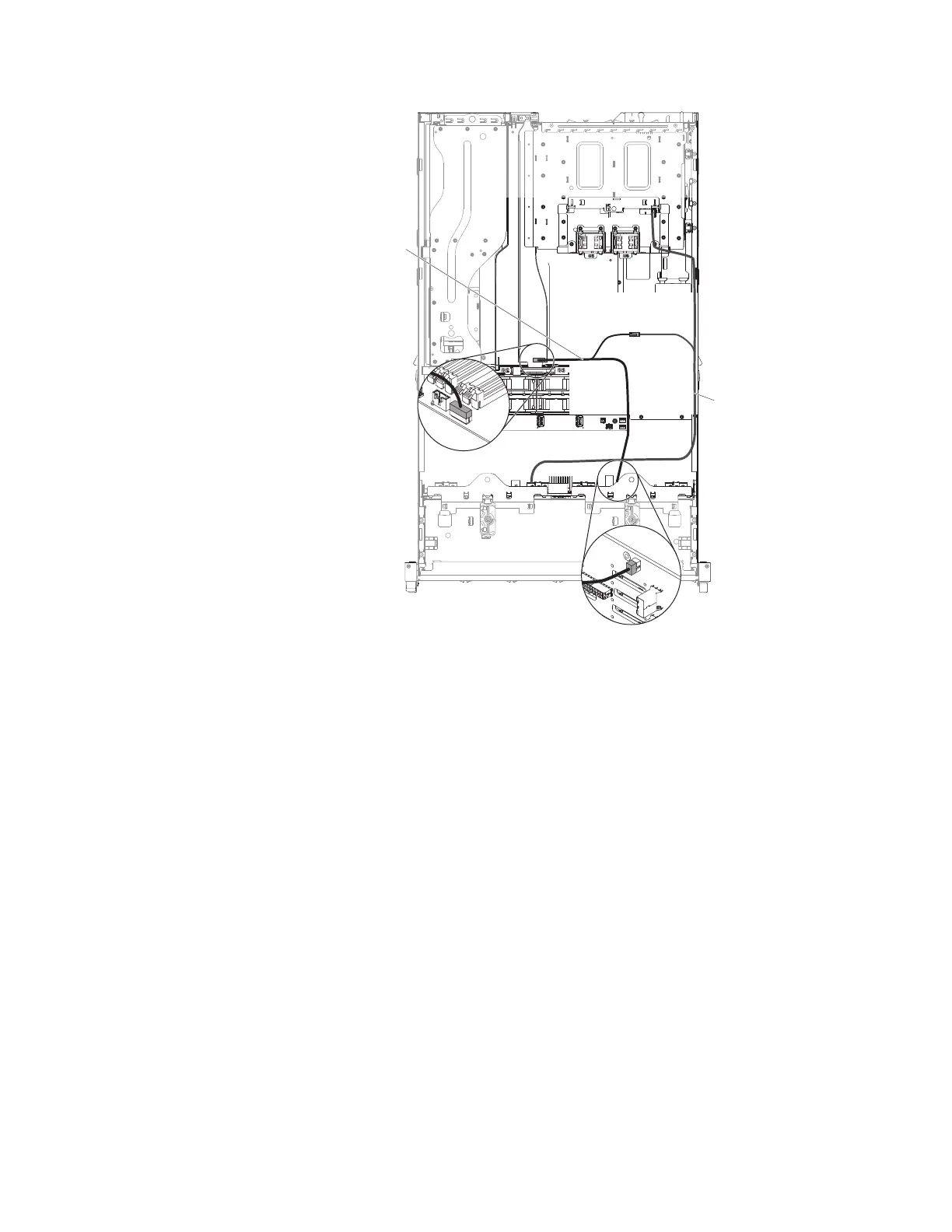

LED signal cable
(from option package)
2
Hot-swap backplane
signal cable (I C cable)
9. If you are instructed to return the rear hard disk drive cage, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing an optional hot-swap SAS/SATA rear 2.5-inch hard disk drive
cage
To install the optional rear hot-swap SAS/SATA hard disk drive cage, complete the
following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 145).
4. Loosen the screw that secure the drive filler cage to the chassis; then, rotate
the drive filler clockwise and remove the drive filler out of the bay from the
server.
214 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
