8. Remove the PCI riser card from the PCI riser-card assembly.
9. If you are instructed to return the PCI riser card, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing a riser card from the PCI riser-card assembly
To install a PCI riser card, complete the following steps:
1. Touch the static-protective package that contains the new PCI riser card to any
unpainted metal surface on the server. Then, remove the ServeRAID controller
from the package.
2. Align the screw holes on the PCI riser card with the screw holes on the PCI
riser-card assembly. Make sure the locating pins engages the PCI riser card.

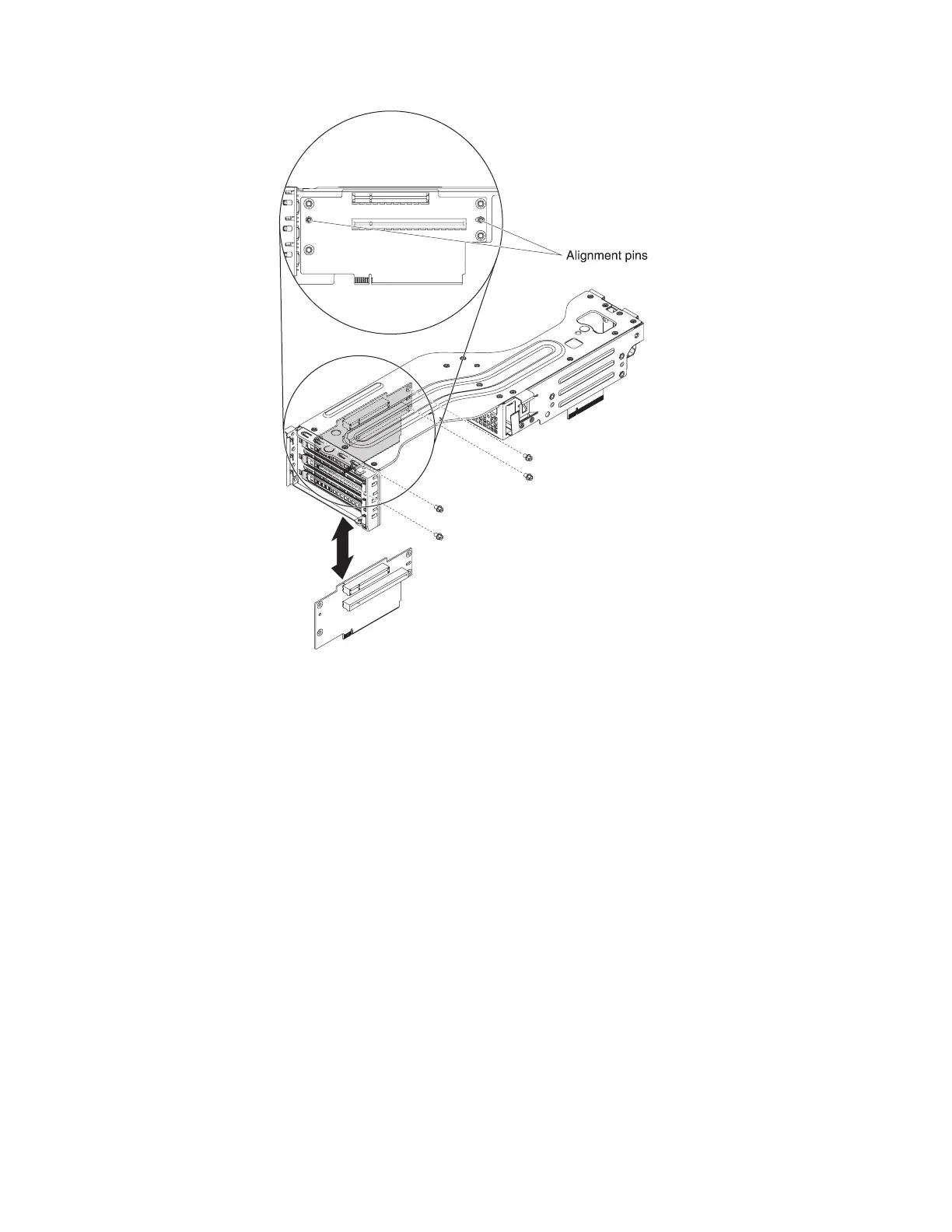

The following illustration shows how to install PCI riser card 1 on the PCI
riser-card assembly:
154 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
