7. If you are instructed to return the ServeRAID controller battery, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Installing a ServeRAID controller battery on the remote battery tray
The Intelligent Battery Backup Unit (iBBU) is an optional battery for the ServeRAID
adapter. It is referred to as the battery throughout this section. You must purchase
the remote battery cable and install the battery at a distance from the ServeRAID
adapter to avoid overheating.
You can install up to two batteries on the remote battery trays on the PC riser-card
assembly.
To install a ServeRAID controller battery on the remote battery tray, complete the
following steps:

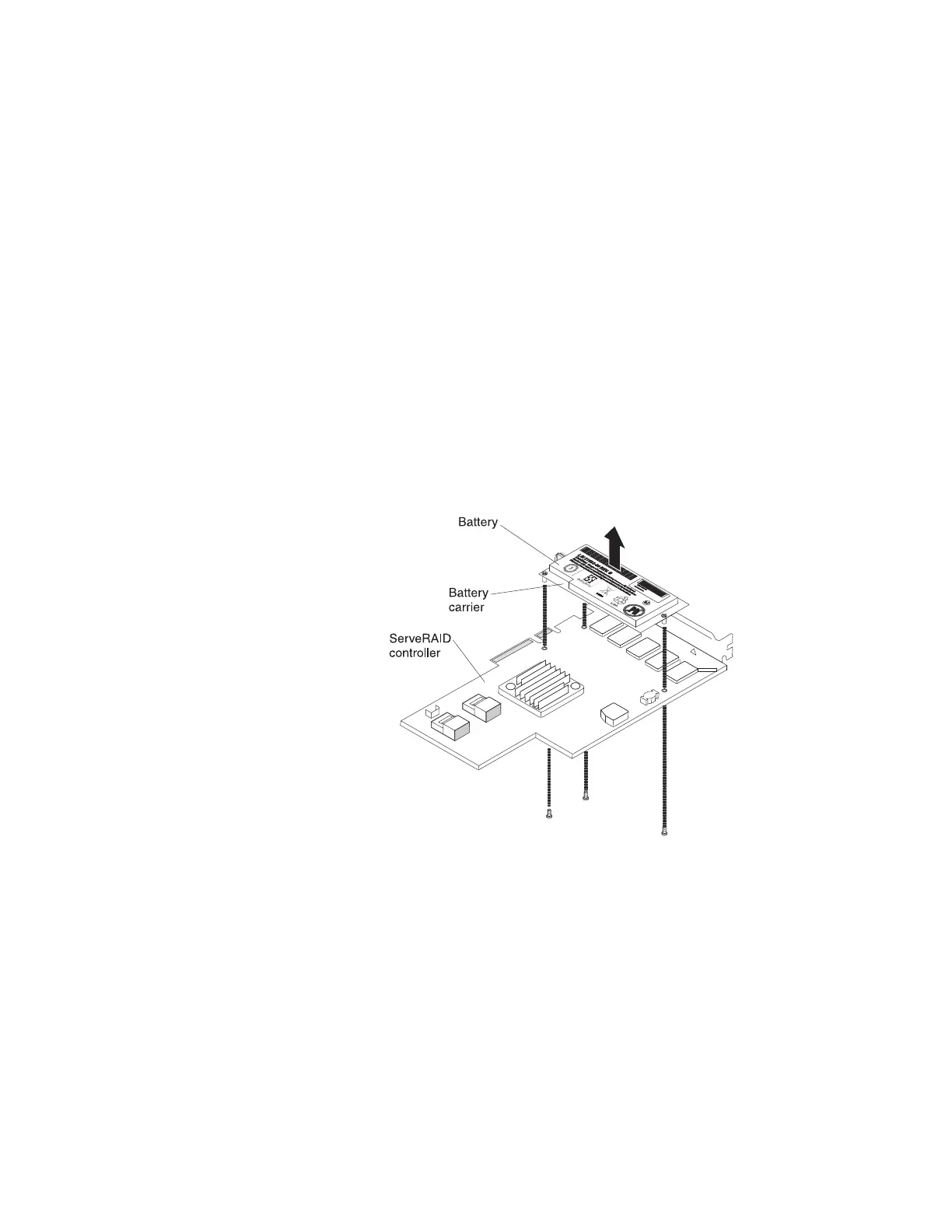

1. If a battery and battery carrier are attached to the SAS controller, remove the
three screws that secure the battery carrier to the ServeRAID controller. Set
the battery and battery carrier aside.
Note: The illustrations in this document might differ slightly from your
hardware.
2. Install the interposer card on the interposer card connector on the ServeRAID
controller:
a. Remove the interposer card and the loose screw from the bag.
b. Rotate the standoff so that it aligns with the hole in the ServeRAID
controller, and position the interposer card connector over the ServeRAID
controller connector.
172 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide
