IBM x3630 M3 7377 User Manual

Installing an optional hot-swap SAS/SATA rear 3.5-inch hard disk drive
cage
To install the optional rear hot-swap SAS/SATA hard disk drive cage, complete the
following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 145).

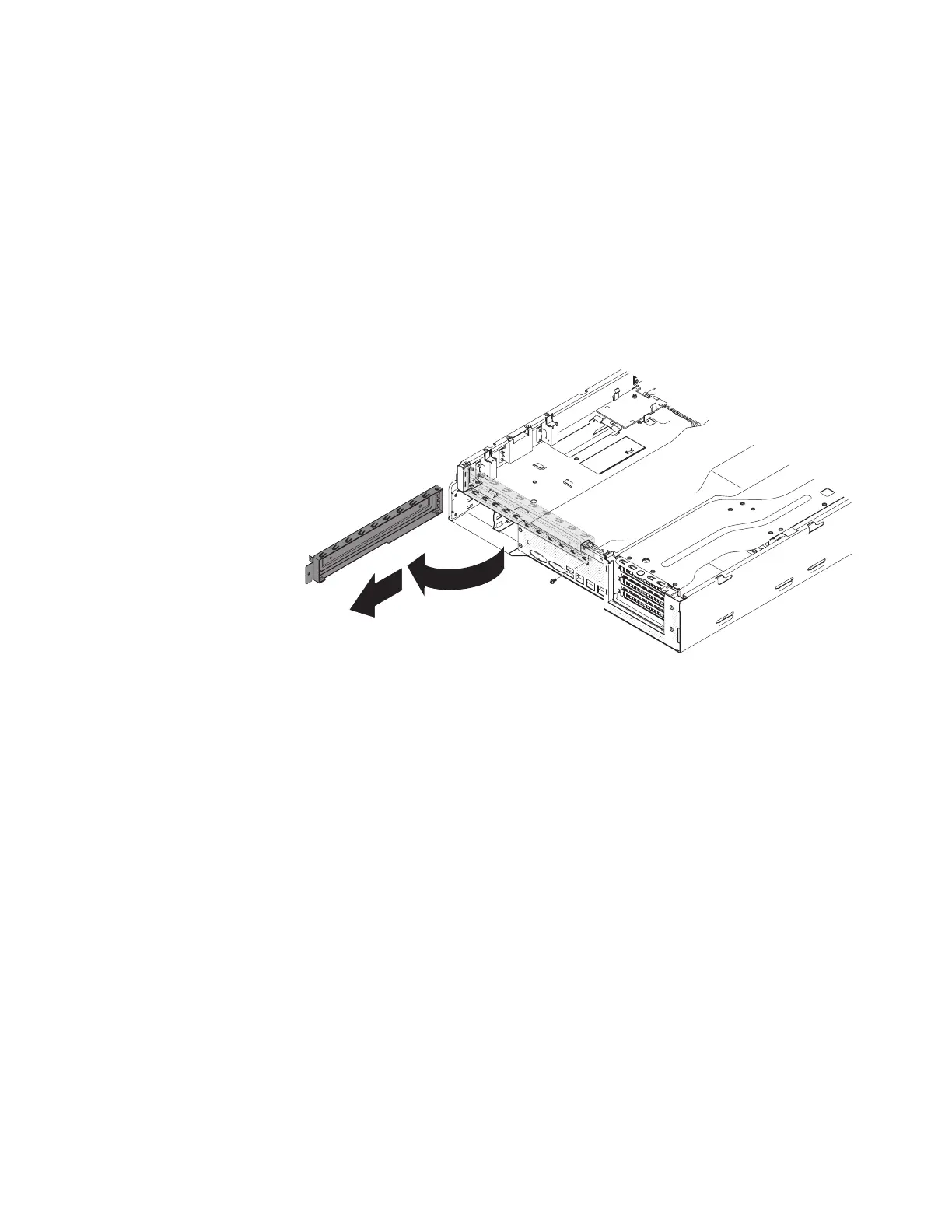

4. Loosen the screw that secure the drive filler cage to the chassis; then, rotate
the drive filler clockwise and remove the drive filler out of the bay from the
server.
5. Remove the air baffle (see “Removing the air baffle” on page 148).
6. Find the rear hard disk drive detect pin of the hot-swap backplane signal (I
2
C)
cable located near the system fan cage; then, connect with the rear hard disk
drive detect pin of the signal cable from the option package.
Chapter 5. Removing and replacing server components 205

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
