Removing a USB hypervisor key
To remove a USB hypervisor key from the server, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 145).

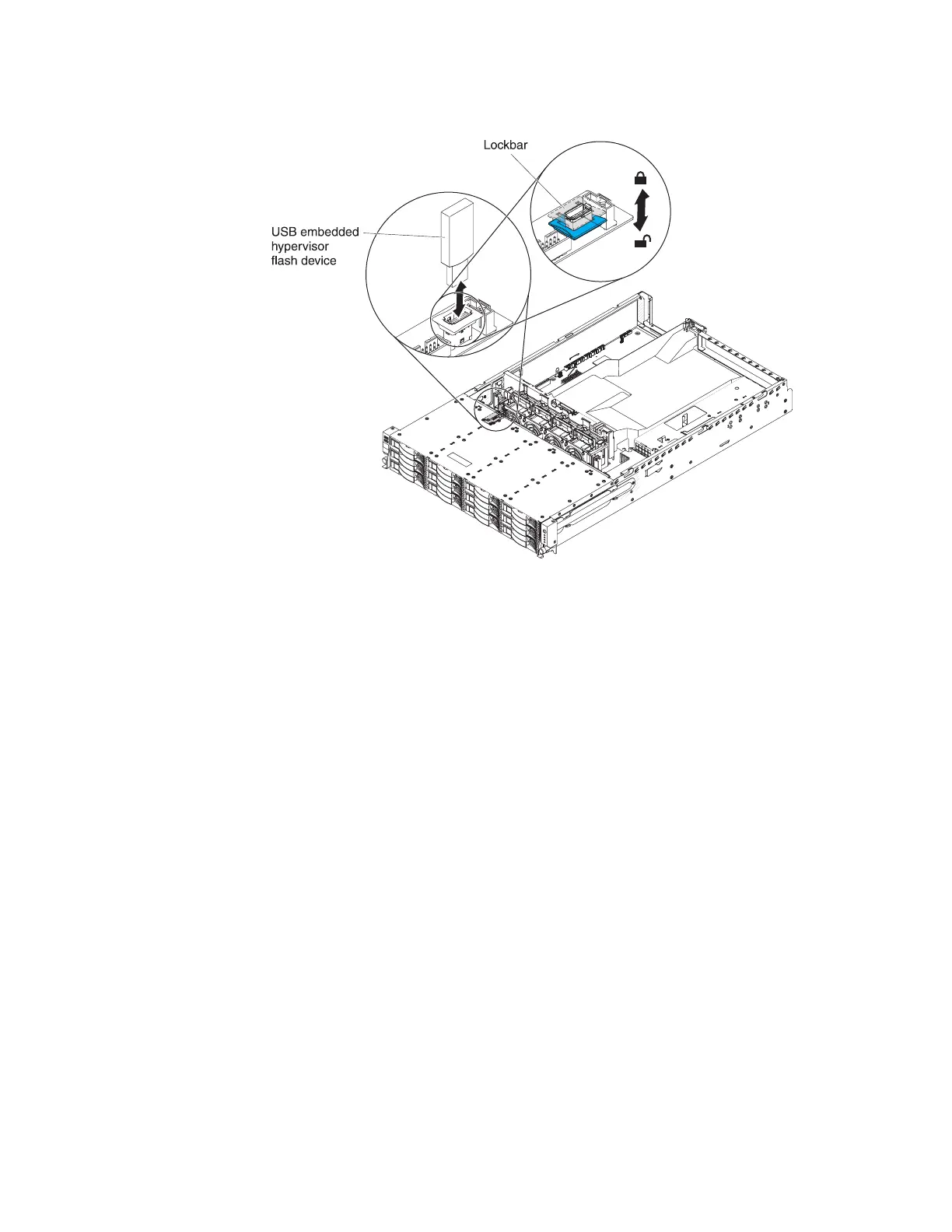

4. Push down the blue locking collar on the USB hypervisor connector to unlock it
from the connector.
5. Pull the hypervisor memory key out of the USB hypervisor connector.
6. If you are instructed to return the hypervisor memory key, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Note: You must configure the server not to look for the hypervisor USB drive. See
“Configuring the server” on page 234 for information about disabling hypervisor
support.
Chapter 5. Removing and replacing server components 169

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
