Removing the operator information panel
To remove the operator information panel, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices, and disconnect the power cord and
all external cables.
3. Remove the cover (see “Removing the cover” on page 145).
4. If you have the optional hot-swap rear hard disk drive cage installed, rotate it
up (see “Rotating the optional hot-swap rear hard disk drive cage up” on page
147).
5. Remove the air baffle (see “Removing the air baffle” on page 148).

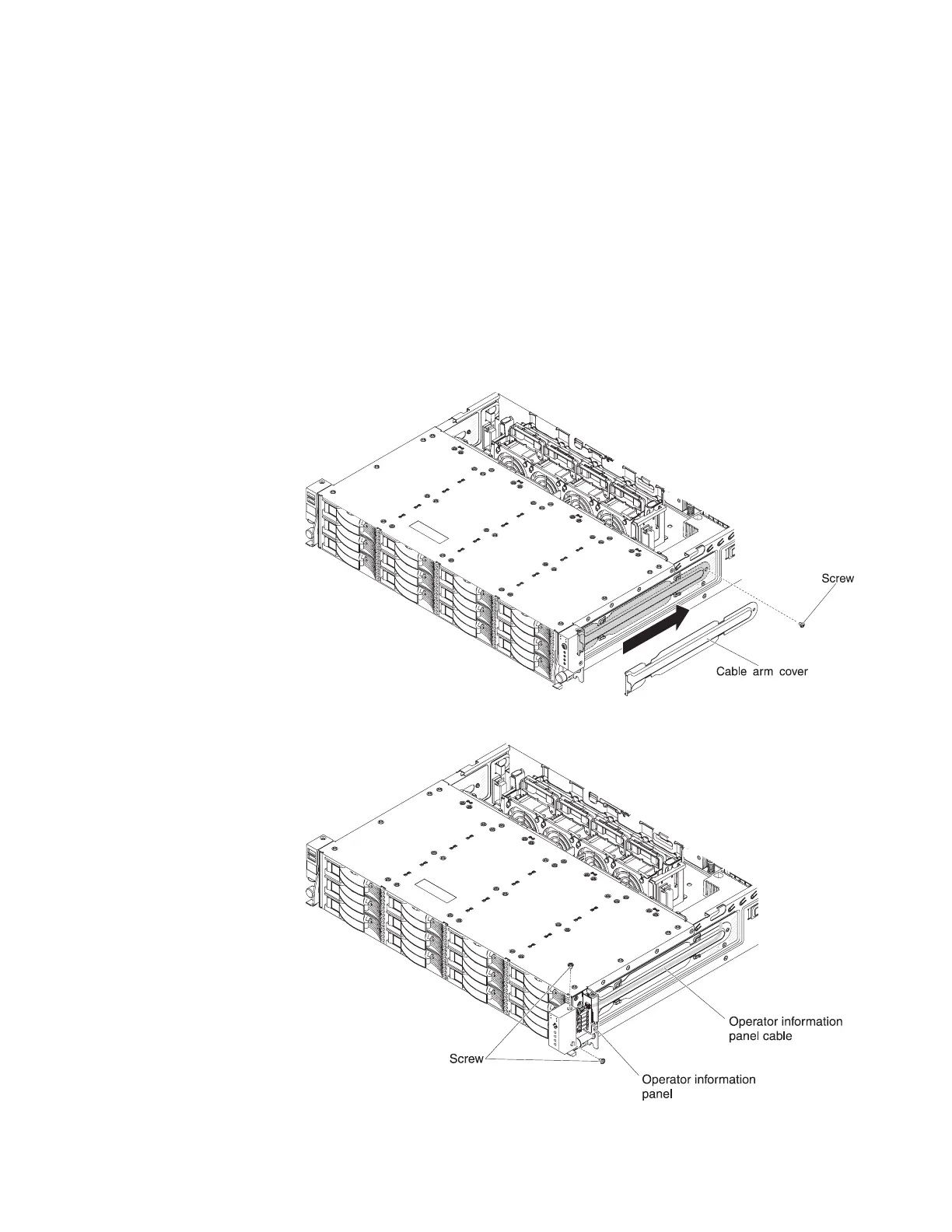

6. Remove the screw from the cable arm cover; then, slide the cable arm cover
towards the rear of the server and set it aside.
7. Remove the screws from the bracket cover.
8. Remove the operator information front bezel.
Chapter 5. Removing and replacing server components 181
