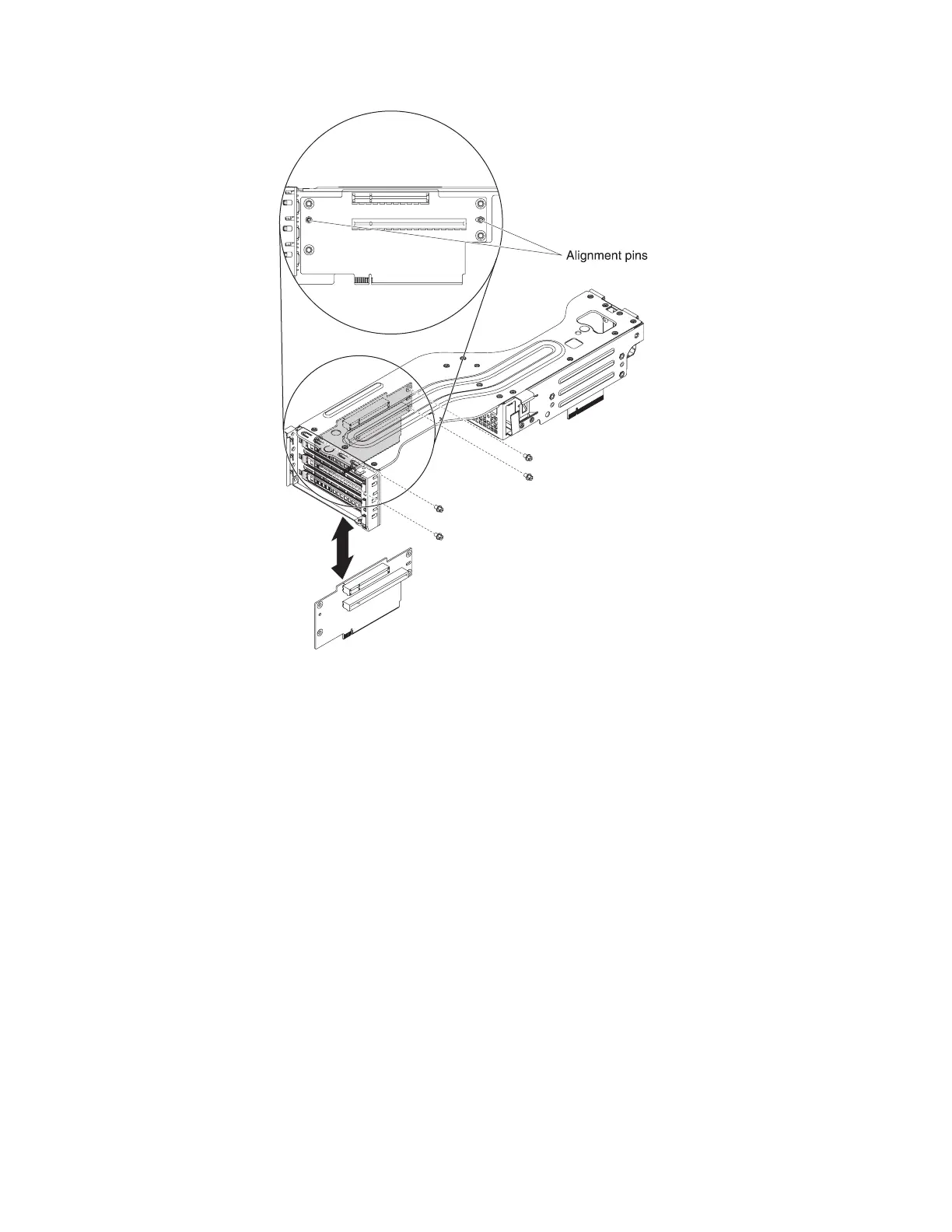

3. Install the screws to secure the PCI riser card to the PCI riser-card assembly.
4. Install any adapter that you removed (see “Installing an adapter on the PCI
riser-card assembly” on page 157).
5. Install the remote battery tray if you removed it (see step 4 on page 174 of the
“Installing a ServeRAID controller battery on the remote battery tray” on page
172 procedure).
6. Install the PCI riser-card assembly (see “Installing the PCI riser-card assembly”
on page 151).
7. Install the server cover (see “Installing the cover” on page 146).
8. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.
Removing an adapter from the PCI riser-card assembly
This topic describes removing an adapter from a PCI expansion slot in the PCI
riser-card assembly. These instructions apply to PCI adapters such as video graphic
adapters, and network adapters.
To remove an adapter from a PCI expansion slot, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables.
3. Remove the cover (see “Removing the cover” on page 145).
156 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide
