b. On the remote battery tray, find the pattern of recessed rings that matches
the posts on the battery carrier.
c. Press the posts into the rings on the remote battery tray. Make sure the
two retention clips secure the battery and battery carrier on the remote
battery tray.
4. Align the two pins on the remote battery tray with the holes on the PCI
riser-card assembly and press the retention latch into the slot to secure the
remote battery tray on the PCI riser-card assembly.

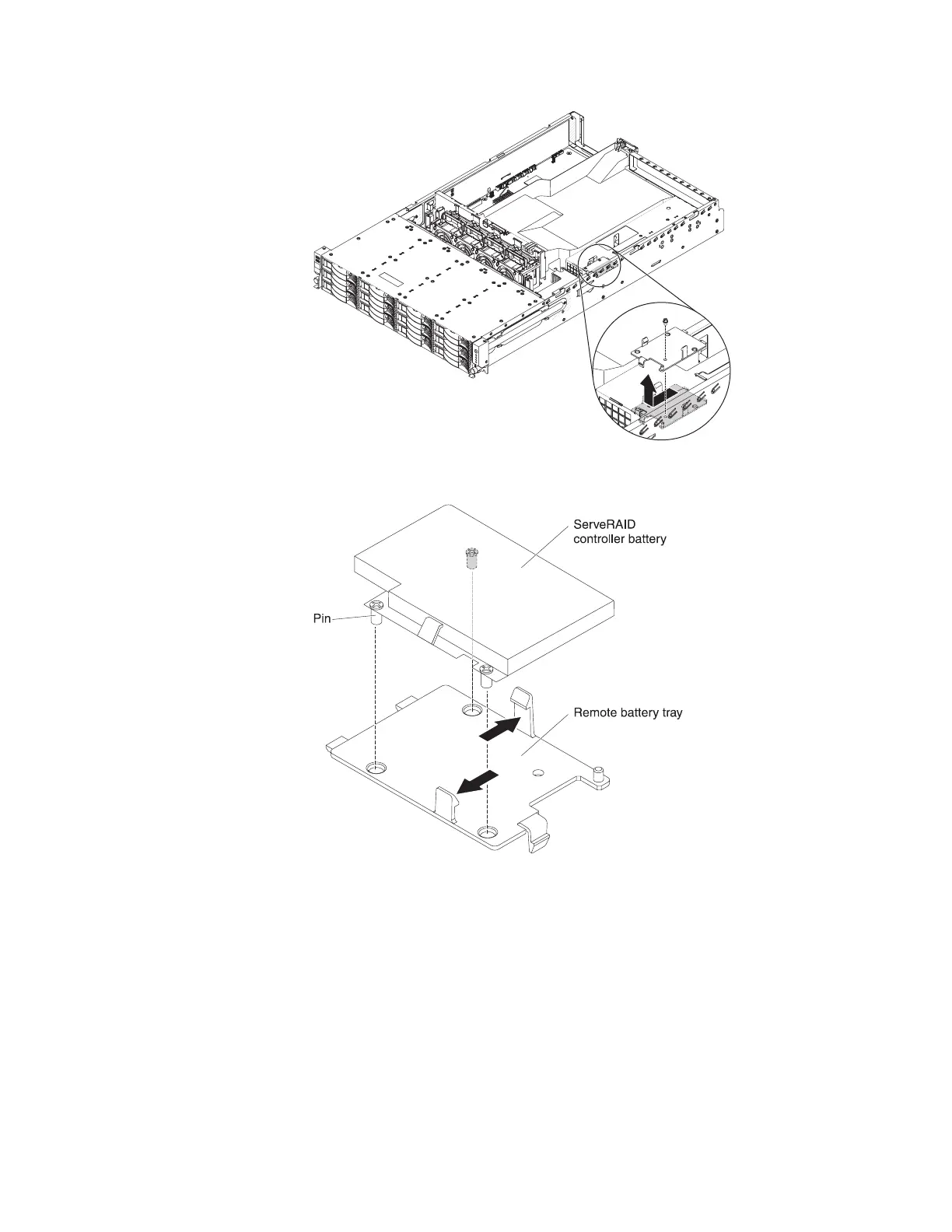

The following illustration shows how to instal the bottom remote battery tray.
174 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
