9. Disconnect the cable to the operator information panel.
10. Make note of where the cable is attached to the system board; then,
disconnect it.
11. If you are instructed to return the operator information panel, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Installing the operator information panel
To install the operator information panel, complete the following steps:
1. Touch the static-protective package that contains the operator information
panel to any unpainted metal surface on the outside of the chassis; then,
remove the operator information panel from the package.
2. Reconnect the cable to the operator information panel.
3. Place the operator information panel in the bracket cover. Make sure it is
securely seated inside the bracket cover.
4. Install the screws to secure the bracket cover to the server.

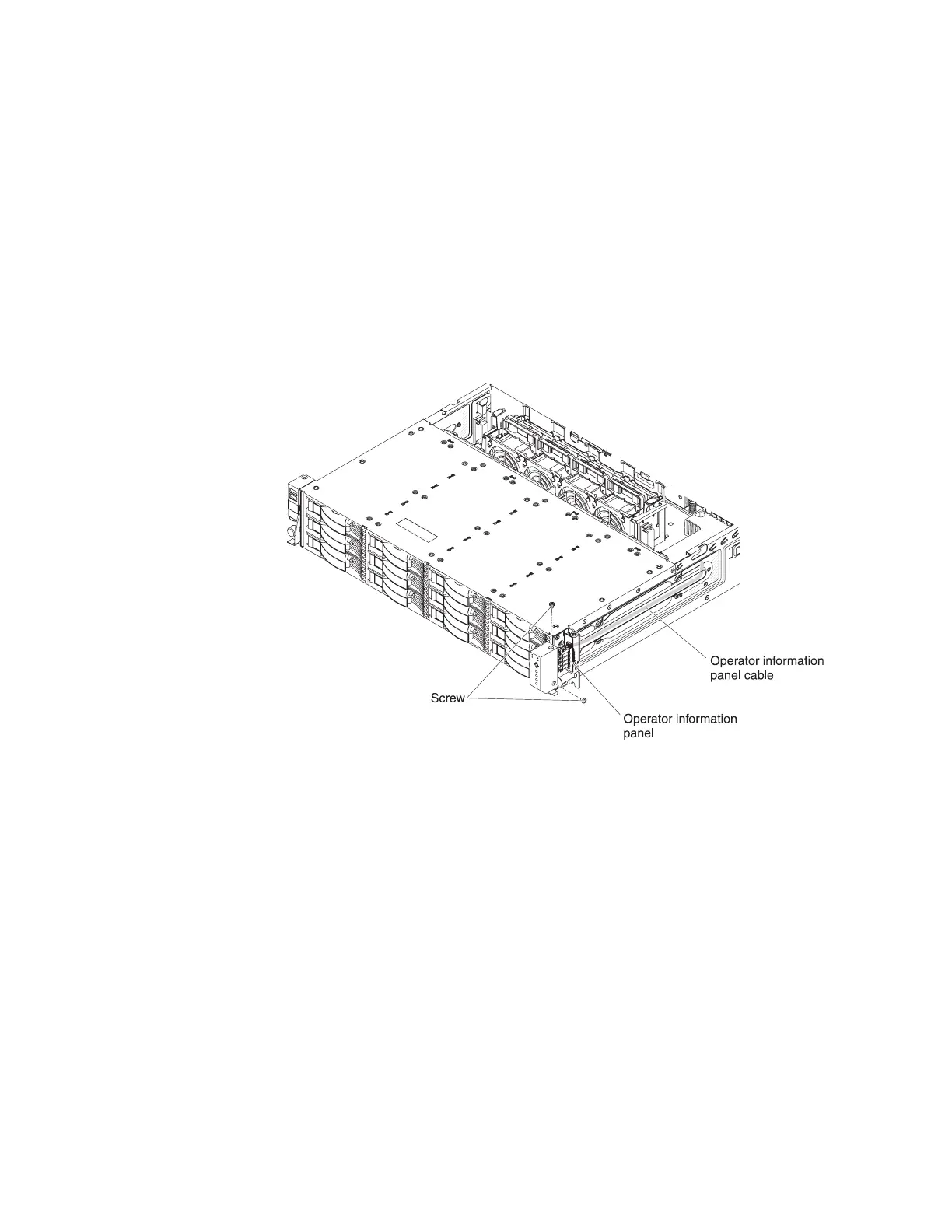

5. Connect the cable to the system board. The following illustration shows the
internal cable routing and connector for the front operator information panel
cable.
Note: The cable is routed on the outside of the chassis and connected to the
system board. The cable must be protected by the cable cover on the side of
the chassis.
