7. Replace the system fan cage (see “Installing the system fan cage” on page
191).
8. Reconnect the power cable, then the signal cables.
9. Install the cover (see “Installing the cover” on page 146).
10. Install the hot-swap hard disk drives (see “Installing a hot-swap hard disk
drive” on page 138).
11. Reconnect the external cables; then, reconnect the power cords and turn on
the peripheral devices and the server.
Removing the 2.5-inch HS HDD backplane
To remove the hot-swap hard disk drive backplane, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 133.
2. Turn off the server and peripheral devices, and disconnect the power cord and
all external cables.
3. Remove all hot-swap hard disk drives (see “Removing a hot-swap hard disk
drive” on page 138).
4. Remove the cover (see “Removing the cover” on page 145).

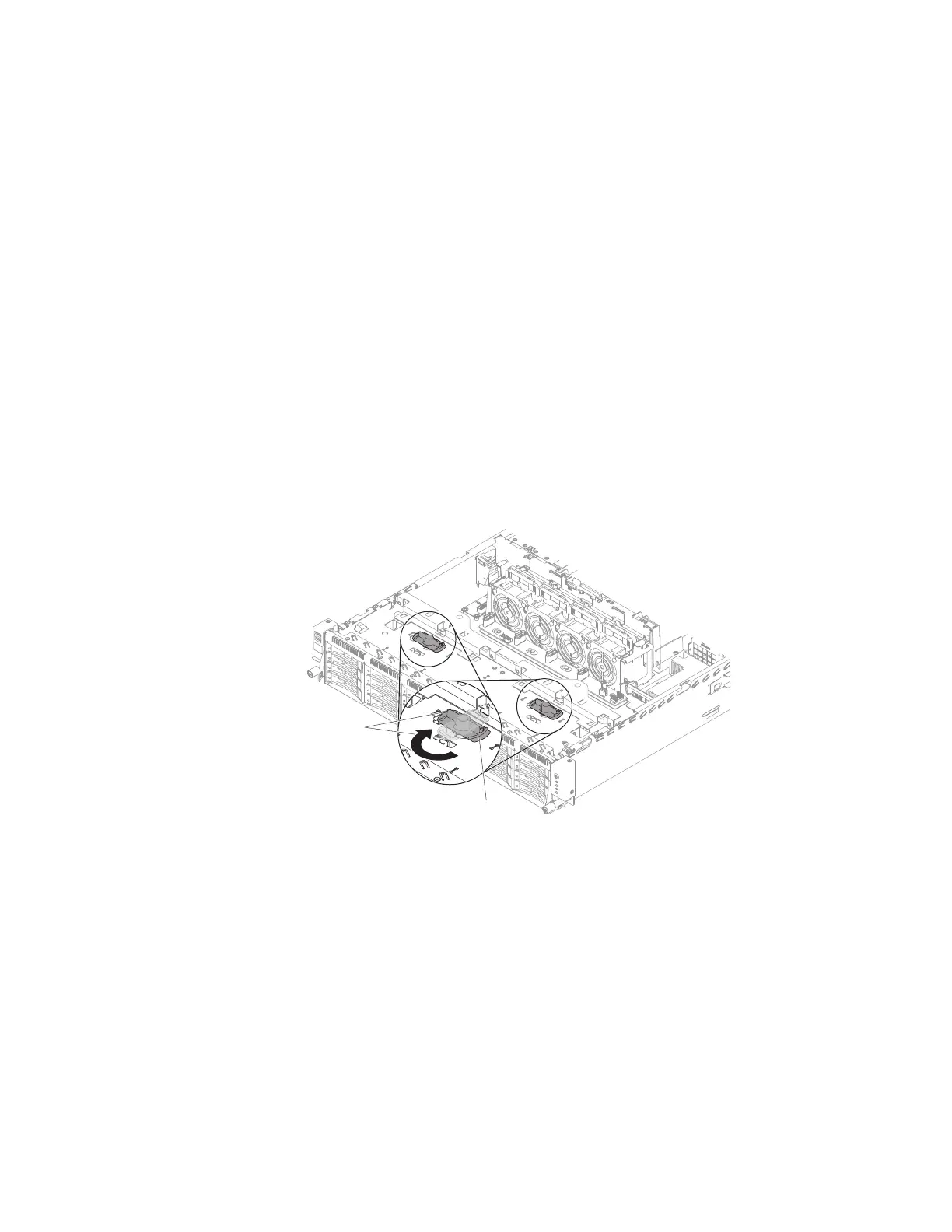

5. Rotate the blue latches clockwise till they are in horizontal positions.
Lock point
Latche
6. Press the release latches and rotate out the top of the backplane; then, remove
the backplane out of the server by pulling and lifting it up.
Chapter 5. Removing and replacing server components 199
