5. Lift the USB board out of the server.
6. Remove the USB hypervisor key if one is installed (see “Removing a USB
hypervisor key” on page 169).
7. Make note of where the cables are attached to the USB board; then, disconnect
them.
8. If you are instructed to return the USB board, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.

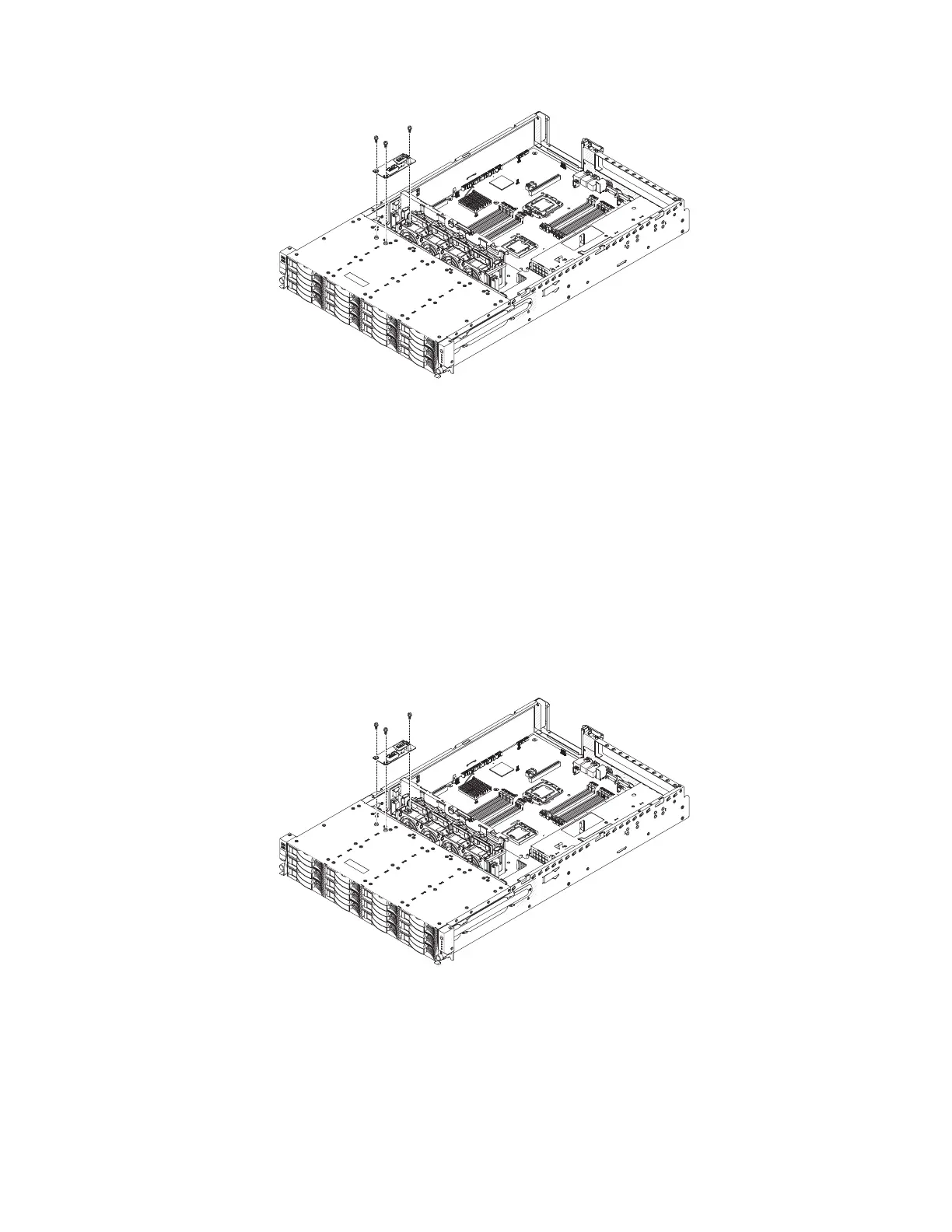

Installing the USB board
To install the USB board, complete the following steps:
1. Touch the static-protective package that contains the USB board to any
unpainted metal surface on the outside of the chassis; then, remove the USB
board from the package.
2. Align the screw holes on the USB board with the screw holes on the chassis.
3. Install the USB hypervisor key if you removed it (see “Installing a USB
hypervisor key” on page 170).
4. Install the screws to secure the USB board on the chassis.
5. Reconnect the USB board cables.
6. Install the cover (see “Installing the cover” on page 146).
7. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.
180 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide
