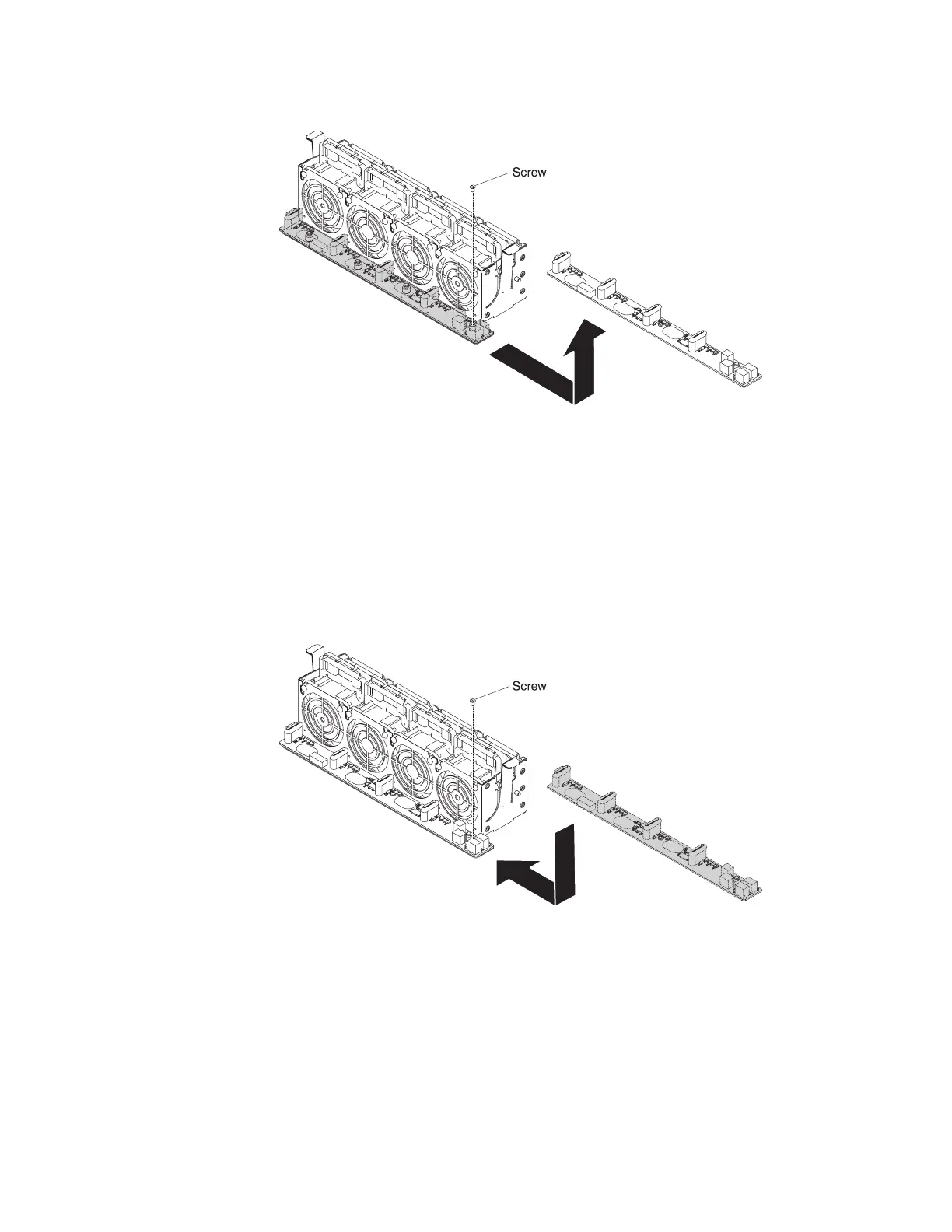

5. Remove the screw that secures fan board to the fan cage.
6. Pull to disengage the fan board from the locating pins; then, remove the fan
board.
7. If you are instructed to return the fan board, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Installing the fan board
To install the fan board, complete the following steps:
1. Touch the static-protective package that contains the fan board to any unpainted
metal surface on the server. Then, remove the fan board from the package.
2. Align the holes on the fan board with the locating pins on the fan cage.
3. Slide the fan board until the locating pins securely engage the fan board.
4. Install the screw to secure the fan board on the system fan cage.
5. Install the system fan cage (see “Installing the system fan cage” on page 191).
6. Install the cover (see “Installing the cover” on page 146).
7. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.
Removing the power-supply paddle card
To remove a power-supply paddle card, complete the following steps:
194 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide
