IBM x3630 M3 7377 User Manual

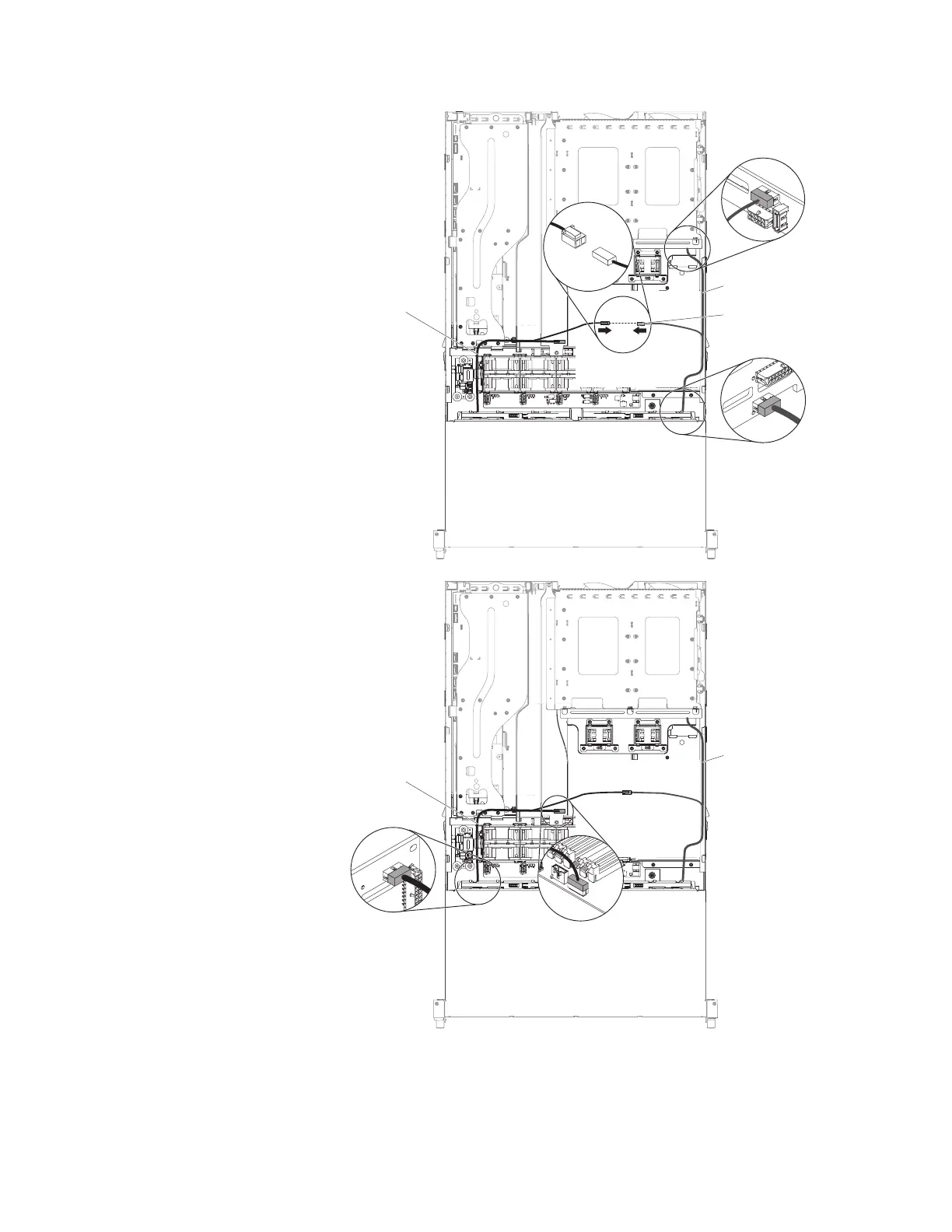

LED signal cable
(from option package)
Rear hard disk drive
detect pin
2
Hot-swap backplane
signal cable (I C cable)
LED signal cable
(from option package)
2
Hot-swap backplane
signal cable (I C cable)
7. Install the air baffle (see “Installing the air baffle” on page 150).
8. Open the latches on the chassis 1 and the pins of the rear hard disk drive
cage 2.
9. Align the edge of the rear hard disk drive cage on the right side of the chassis.
Slide the cage into the chassis support bracket until it sits into place. Then,
206 IBM System x3630 M3 Type 7377: Problem Determination and Service Guide

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
